IKO PHS4
Rod End, Metric, Insert Type, Female Thread (Right Handed)

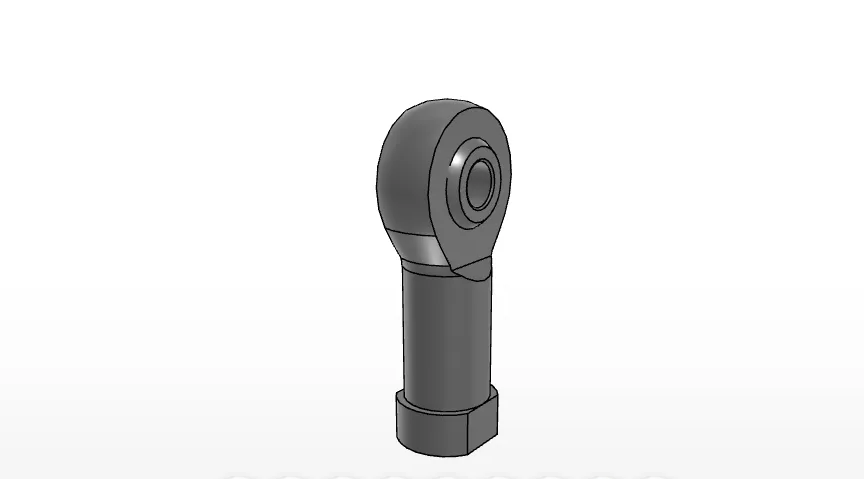

IKO PHS4 Rod End for Metric Installations
The IKO PHS4 is part of the IKO Rod Ends series and is listed as a metric, insert-type rod end with female, right-hand thread. Its order number is PHS4, and the supplied specification identifies the bearing type as Rod Ends.
What is the basic model and thread configuration?
The model is PHS4, branded IKO. The rod end uses an M4x0.7 right-hand female thread and has an inside diameter of 4 mm.

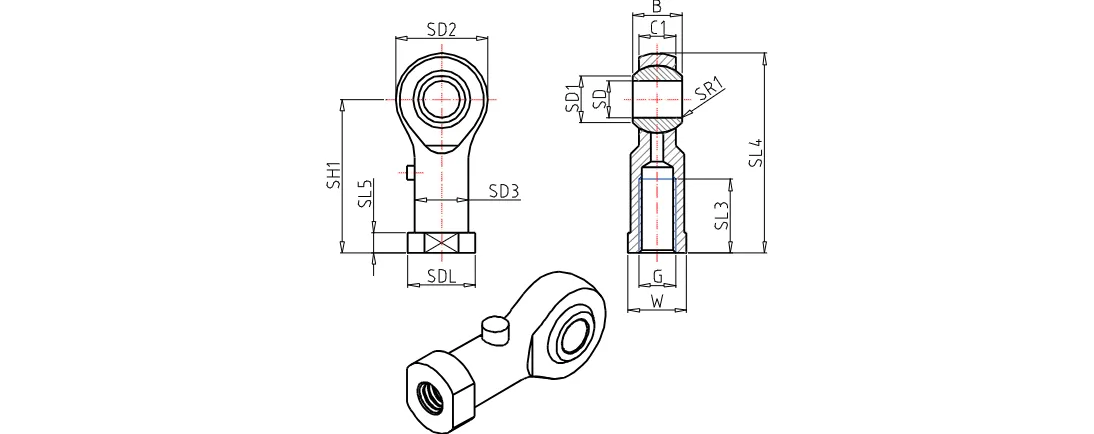

PHS4 Dimensions and Physical Specifications
The supplied dimensional data lists an outer diameter of 14 mm, width of 5.3 mm, inner-ring width of 7 mm, and a 6.5 mm diameter measurement. The total length is 31 mm, with additional dimensions including 24 mm, 12 mm, 4.0 mm, 8.0 mm, 8.0 mm, and 9.5 mm. The minimum chamfer dimension r1s is 0.2 mm, and the ball diameter is 9.525 mm.
What are the key dimensional values to review?
- Inside diameter: 4 mm
- Thread: M4x0.7, right-hand female
- Diameter: 14 mm
- Width: 5.3 mm
- Inner-ring width: 7 mm
- Total length: 31 mm
- Ball diameter: 9.525 mm
- r1s min.: 0.2 mm
PHS4 Load Rating and Mass Information
The PHS4 rod end has a stated dynamic load capacity of 2480 N and a static load capacity of 4680 N. The listed mass is 11.9 g. These values can be checked against the required installation and load requirements before selection.
What load and mass details are provided?
- Dynamic load capacity: 2480 N
- Static load capacity: 4680 N
- Mass: 11.9 g
