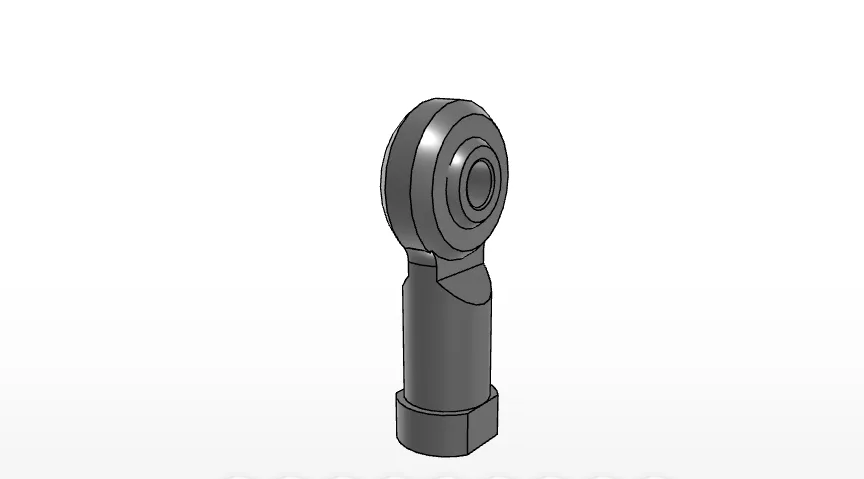

IKO PHS4EC
Rod End, Metric, Female Thread, Maintenance Free Type (Right Handed)
(BRAND)：IKO
(Availability)：In Stock
Order Number
PHS4EC
Inside Diameter
4
mm
Thread
M4x0.7
Diameter
14
mm
Width
5.30
mm
Width of innerring
7
mm
Diameter
6.5
mm
Total Lenght
31
mm
Dimension
24
mm
Length
12.0
mm
Dimension
4.0
mm
Width
8.0
mm
Diameter
8.0
mm
Diameter
9.5
mm
r1s min
0.2
mm
Diameter of Ball
9.525
mm
Dynamic load capacity
4950
N
Static load capacity
3260
N
Mass
11.9
g
IKO PHS4EC Rod End Supports Metric Rod End Applications
What type of bearing is the PHS4EC?
The IKO PHS4EC is part of the IKO Rod Ends product series. It is listed as a metric, female-thread, maintenance-free rod end with a right-handed thread.
- Brand: IKO
- Model: PHS4EC
- Bearing type: Rod Ends
- Category: Brand > IKO > Rod Ends

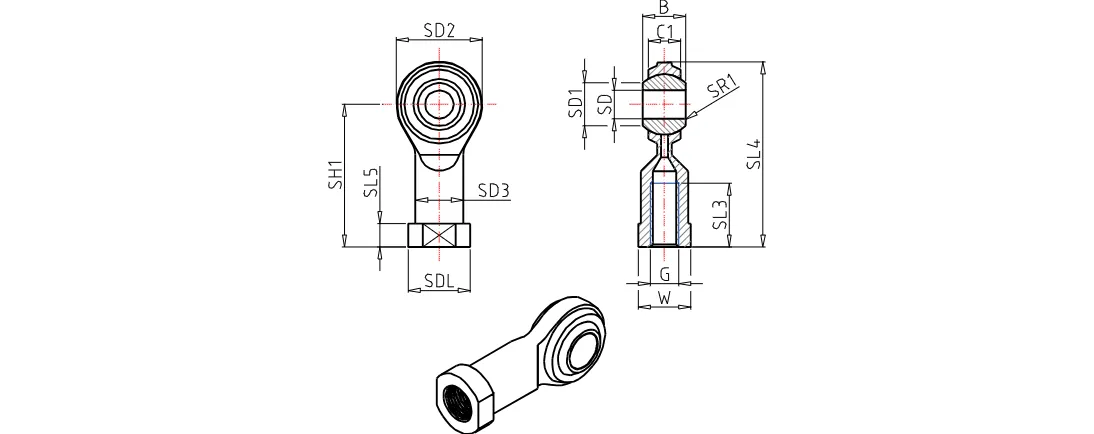

PHS4EC Provides Documented Metric Dimensions and Thread Data
What dimensions are specified for the PHS4EC?
The supplied product data lists the following measurements for selecting or comparing this rod end:
- Inside diameter: 4 mm
- Thread: M4 x 0.7, right-handed female thread
- Diameter: 14 mm
- Width: 5.30 mm
- Width of inner ring: 7 mm
- Diameter: 6.5 mm
- Total length: 31 mm
- Dimension: 24 mm
- Length: 12.0 mm
- Dimension: 4.0 mm
- Width: 8.0 mm
- Diameter: 8.0 mm
- Diameter: 9.5 mm
- r1s min: 0.2 mm
- Diameter of ball: 9.525 mm
PHS4EC Includes Listed Load Capacity and Mass Information
What load and mass values are recorded in the product data?
The supplied data identifies the PHS4EC with a dynamic load capacity of 4950 N, a static load capacity of 3260 N, and a mass of 11.9 g. These values should be used with the complete dimensional information when evaluating the part against a specific requirement.
- Confirm the 4 mm inside diameter and M4 x 0.7 right-handed female thread.
- Review the listed body, length, width, ball, and corner dimension data.
- Compare the 4950 N dynamic and 3260 N static load values with the intended requirement.
