IKO PHS4ECL
Rod End, Metric, Female Thread, Maintenance Free Type (Left Handed)

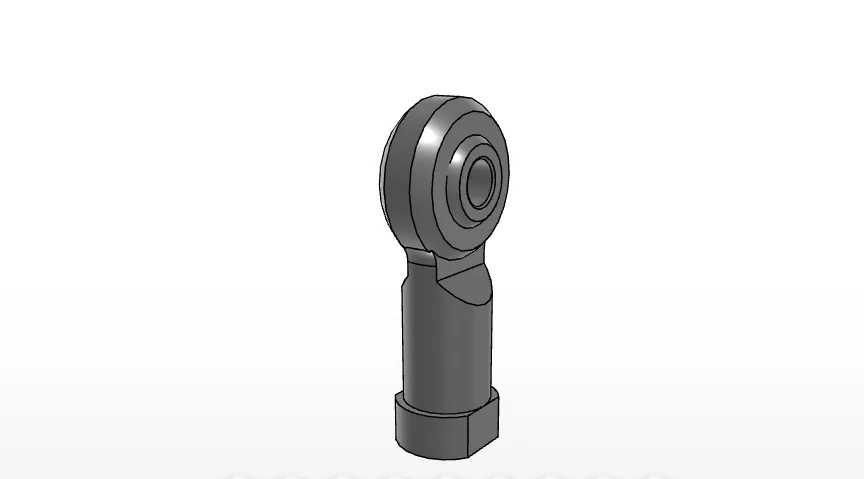

The IKO PHS4ECL Is a Metric Female-Thread Rod End
The PHS4ECL is an IKO rod end in the Rod Ends series. It is supplied as a metric, maintenance-free type with a female thread and a left-hand thread arrangement. Its listed order number is PHS4EC, with order code PHS4ECL.
What are the basic identification details?
This rod end is branded IKO, belongs to the Rod Ends product series, and has a 4 mm inside diameter. The female thread is specified as M4x0.7.
The PHS4ECL Includes Documented Dimensions and Mass

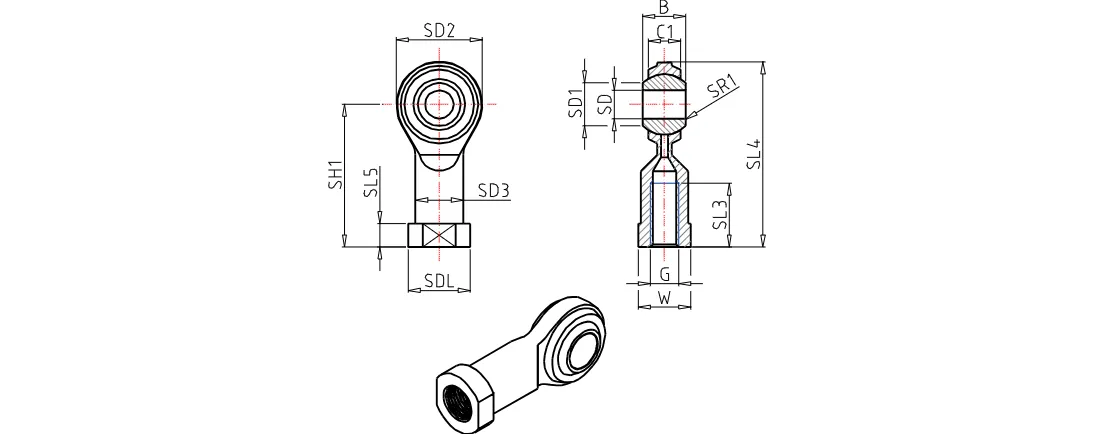

The product data lists the following dimensional details for the rod end:
- Inside diameter: 4 mm
- Thread: M4x0.7
- Diameter: 14 mm
- Width: 5.30 mm
- Inner-ring width: 7 mm
- Additional diameter: 6.5 mm
- Total length: 31 mm
- Dimension: 24 mm
- Length: 12.0 mm
- Dimension: 4.0 mm
- Width: 8.0 mm
- Diameter: 8.0 mm
- Diameter: 9.5 mm
- r1s minimum: 0.2 mm
- Ball diameter: 9.525 mm
- Mass: 11.9 g
How large is the ball in this rod end?
The listed ball diameter for the PHS4ECL is 9.525 mm.
The PHS4ECL Has Listed Dynamic and Static Load Capacities
The supplied product data specifies a dynamic load capacity of 4950 N and a static load capacity of 3260 N. These values can be used with the component dimensions when reviewing the rod end against the intended assembly requirements.
What bearing type and design information are provided?
The bearing type is listed as Rod Ends. The descriptive product title identifies it as a metric rod end with female thread, maintenance-free construction, and left-handed thread orientation.
