IKO PHS4L
Rod End, Metric, Insert Type, Female Thread (Left Handed)

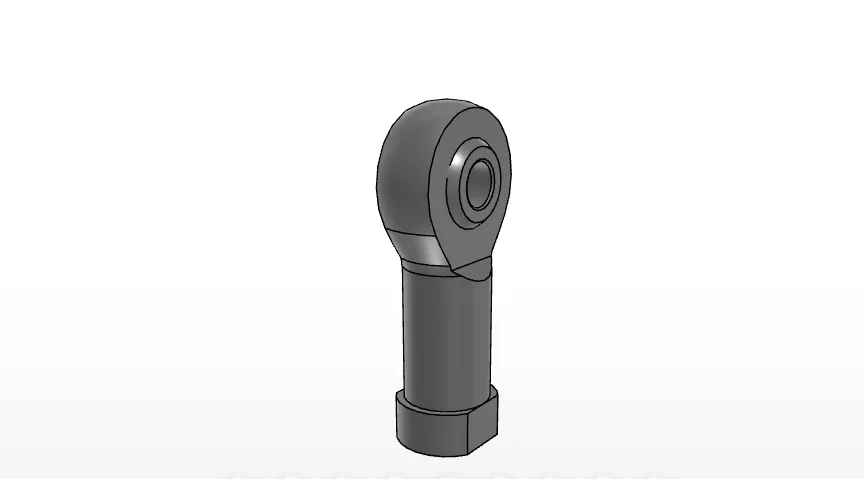

The IKO PHS4L is a metric rod end in the Rod Ends series
IKO PHS4L is listed under Brand > IKO > Rod Ends and is described as a rod end with an insert type and female left-handed thread.
What bearing type and order number identify this product?
The bearing type is Rod Ends, and the order number is PHS4. The supplied model identifier is PHS4L.

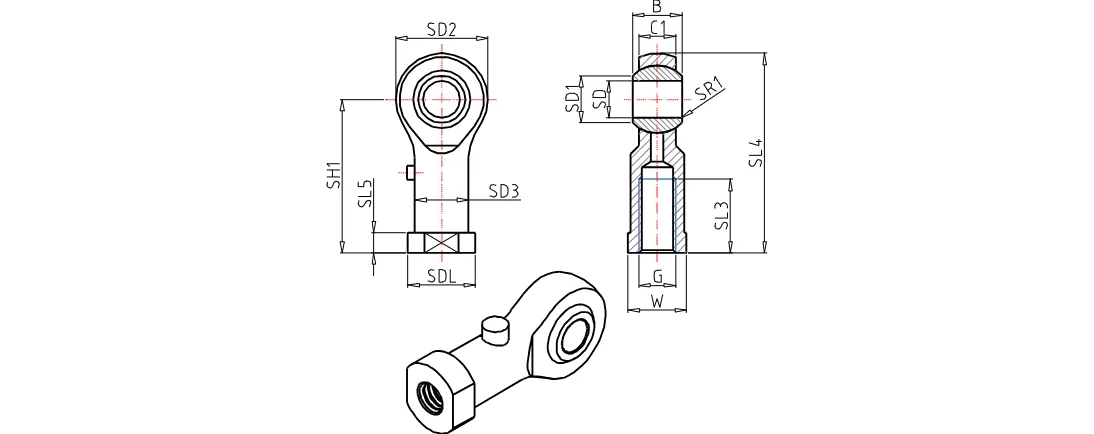

The PHS4L has defined metric dimensions and thread data
Supplied specifications include a 4 mm inside diameter, M4x0.7 left-handed female thread, 14 mm diameter, 5.3 mm width, 7 mm inner-ring width, and 31 mm total length.
- Ball diameter: 9.525 mm
- r1s minimum: 0.2 mm
- Additional supplied dimensions: 6.5 mm diameter, 24 mm dimension, 12 mm length, 4.0 mm dimension, 8.0 mm width, 8.0 mm diameter, and 9.5 mm diameter
- Mass: 11.9 g
What are the bore and thread details?
The PHS4L has a 4 mm inside diameter and an M4x0.7 female thread. The product description identifies the thread as left handed.
The PHS4L includes stated load capacities in the supplied data
The product data lists a dynamic load capacity of 2480 N and a static load capacity of 4680 N. No additional material, certification, stock, warranty, or application details are supplied.
What specifications should be checked before selection?
Review the bore, thread size and hand, dimensional values, mass, and listed load capacities against the assembly requirement. Compatibility and suitability should be confirmed using only the dimensions and product data provided.
