IKO PHS5A
Rod End, Metric, Insert Type, Female Thread (Right Handed)
(BRAND)：IKO
(Availability)：In Stock
Order Number
PHS5A
Inside Diameter
5
mm
Thread
M5x0.8
Diameter
16
mm
Width
6.0
mm
Width of innerring
8
mm
Diameter
7.7
mm
Total Lenght
35
mm
Dimension
27
mm
Length
14
mm
Dimension
4.0
mm
Width
9.0
mm
Diameter
9.0
mm
Diameter
11.0
mm
r1s min
0.2
mm
Diameter of Ball
11.112
mm
Dynamic load capacity
3270
N
Static load capacity
5730
N
Mass
16.5
g

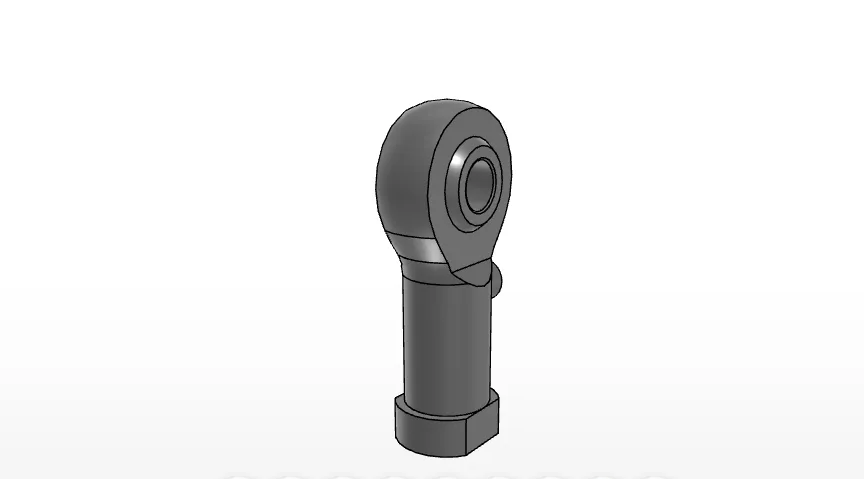

PHS5A IKO Rod End Overview
What is the PHS5A?
The PHS5A is an IKO Rod End with a metric, insert-type design and a right-handed female thread. The listed bearing type is Rod Ends, within the Brand > IKO > Rod Ends category path.

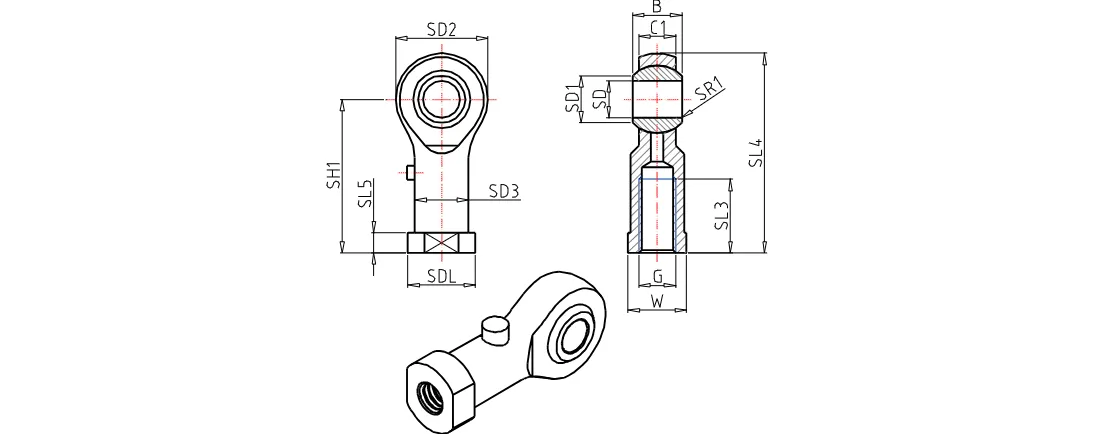

PHS5A Dimensions and Thread Specification
What measurements are provided for the PHS5A?
- Inside diameter: 5 mm
- Thread: M5x0.8, right handed
- Diameter: 16 mm
- Total length: 35 mm
- Mass: 16.5 g
Additional supplied dimensions include width 6.0 mm, inner-ring width 8 mm, diameter 7.7 mm, dimension 27 mm, length 14 mm, dimension 4.0 mm, width 9.0 mm, diameter 9.0 mm, diameter 11.0 mm, r1s min 0.2 mm, and ball diameter 11.112 mm.
PHS5A Load Capacity Details
What load capacity values are listed?
The product data lists a dynamic load capacity of 3270 N and a static load capacity of 5730 N. These values should be used with the complete PHS5A dimensional data when checking suitability for a specific assembly.
