IKO PHS5EC
Rod End, Metric, Female Thread, Maintenance Free Type (Right Handed)

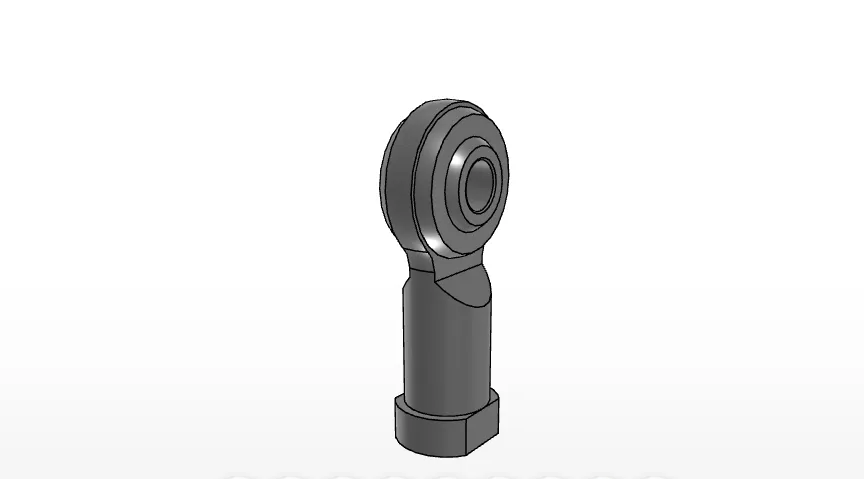

PHS5EC IKO Rod End Overview
The PHS5EC is an IKO Rod End with a metric, right-handed female thread and a maintenance-free type design. The listed order number is PHS5EC, and the bearing type is classified as Rod Ends.
What rod end type is the PHS5EC?
The supplied data identifies it as a metric rod end with female thread, maintenance-free type, and right-handed thread configuration.

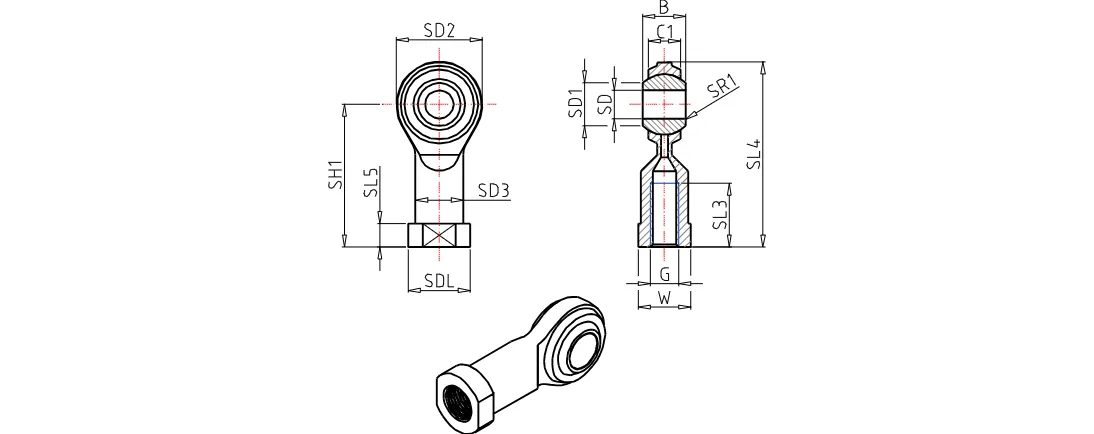

PHS5EC Dimensions and Thread Specifications
The PHS5EC has an inside diameter of 5 mm and an M5x0.8 thread. Additional supplied dimensions include a 16 mm diameter, 6.00 mm width, 8 mm inner-ring width, 7.7 mm diameter, 35 mm total length, 27 mm dimension, 12.5 mm length, 4.0 mm dimension, 9.0 mm width, 9.0 mm diameter, 11.0 mm diameter, and r1s minimum of 0.2 mm.
- Diameter of ball: 11.112 mm
- Mass: 16.5 g
- Series: Rod Ends
- Brand: IKO
What are the main connection measurements?
The product data lists a 5 mm inside diameter and M5x0.8 right-handed female thread for connection-related sizing.
PHS5EC Load Capacity Data
The supplied product data lists a dynamic load capacity of 6540 N and a static load capacity of 4010 N. These values are provided as catalog specifications for the IKO PHS5EC rod end.
- Dynamic load capacity: 6540 N
- Static load capacity: 4010 N
What load ratings are provided for the PHS5EC?
The available data provides the dynamic load capacity as 6540 N and the static load capacity as 4010 N.
