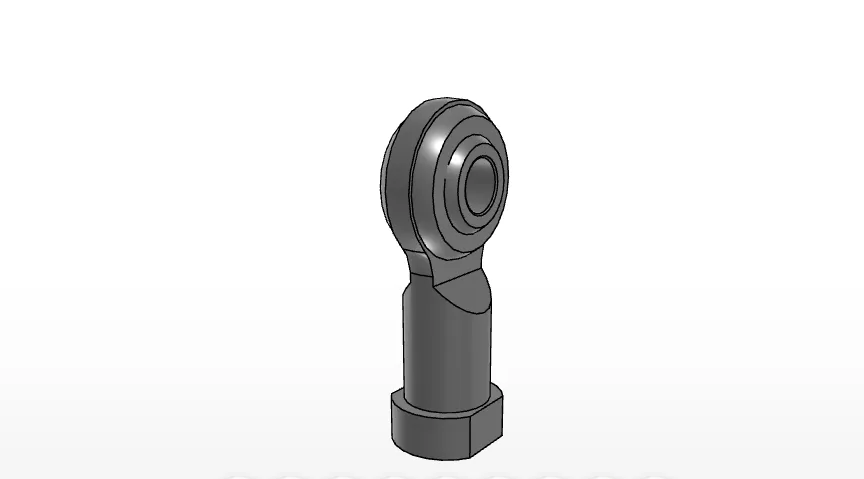

IKO PHS6ECL
Rod End, Metric, Female Thread, Maintenance Free Type (Left Handed)
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

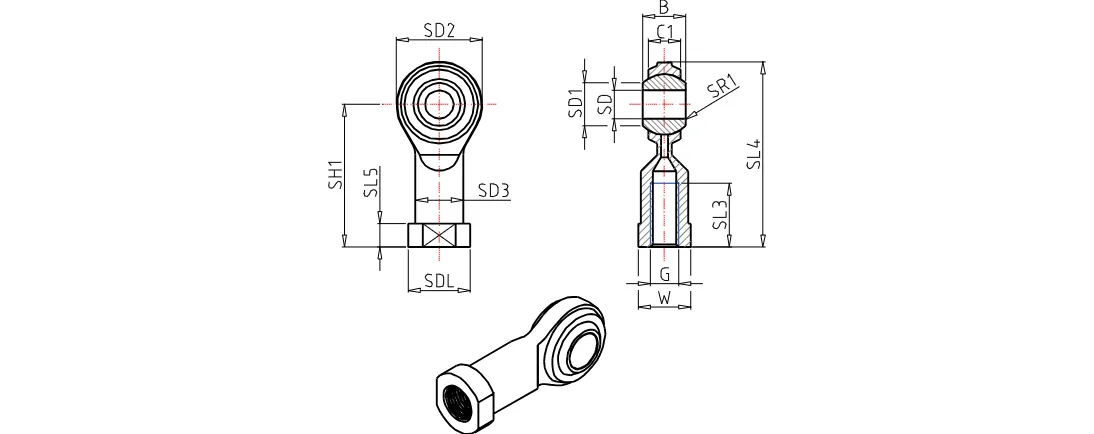

Order Number
PHS6EC
Inside Diameter
6
mm
Thread
M6x1
Diameter
18
mm
Width
6.75
mm
Width of innerring
9
mm
Diameter
9.0
mm
Total Lenght
39
mm
Dimension
30
mm
Length
13.5
mm
Dimension
5.0
mm
Width
11.0
mm
Diameter
10.0
mm
Diameter
13.0
mm
r1s min
0.2
mm
Diameter of Ball
12.700
mm
Dynamic load capacity
8410
N
Static load capacity
4940
N
Mass
25.0
g
