IKO PHS8EC
Rod End, Metric, Female Thread, Maintenance Free Type (Right Handed)
PHS8EC IKO Rod End for Metric Rod End Applications

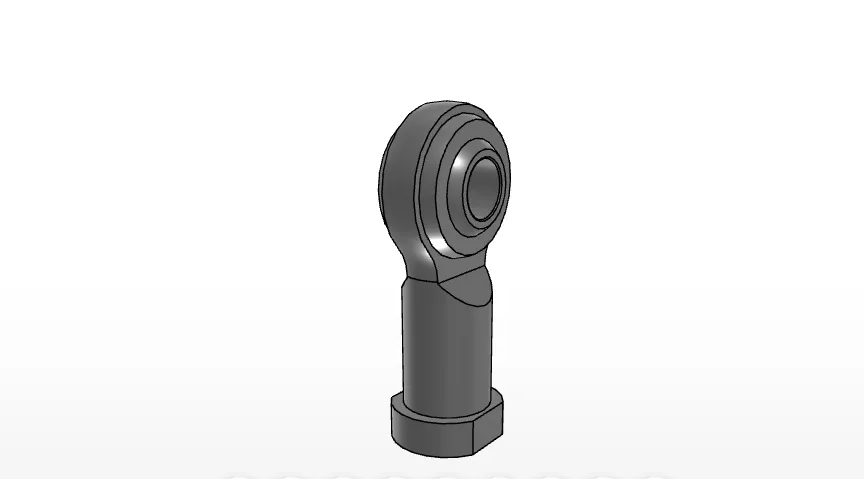

The PHS8EC is an IKO rod end in the Rod Ends series. It is supplied as a metric, female-thread, right-handed, maintenance-free type based on the supplied product data.
What is the bearing type and thread configuration?
The PHS8EC is classified as a Rod End and uses an M8x1.25 female thread with a right-hand thread direction.

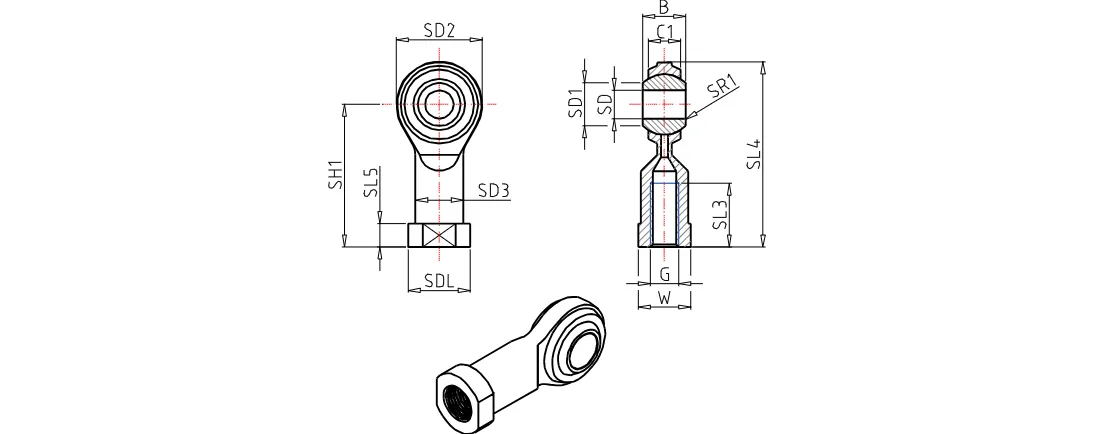

PHS8EC Dimensions and Specification Overview
- Inside diameter: 8 mm
- Thread: M8x1.25
- Diameter: 22 mm
- Width: 9.00 mm
- Inner-ring width: 12 mm
- Diameter: 10.4 mm
- Total length: 47 mm
- Dimension: 36 mm
- Length: 16.0 mm
- Dimension: 5.0 mm
- Width: 14.0 mm
- Diameters: 12.5 mm and 16.0 mm
- r1s minimum: 0.2 mm
- Ball diameter: 15.875 mm
- Mass: 43.0 g
What are the listed load capacities?
The supplied data lists a dynamic load capacity of 14000 N and a static load capacity of 7760 N for the PHS8EC.
PHS8EC Product Identification and Supplied Details
The product is identified by order number PHS8EC and brand IKO. Its category path is Brand > IKO > Rod Ends, and the supplied description identifies it as a metric female-thread maintenance-free rod end with right-handed threading.
How can the PHS8EC be identified from the data?
Use the order number PHS8EC, IKO brand, Rod Ends series, 8 mm inside diameter, M8x1.25 thread, and the listed dimensional values to confirm the supplied product specification.
