IKO PHS8ECL
Rod End, Metric, Female Thread, Maintenance Free Type (Left Handed)

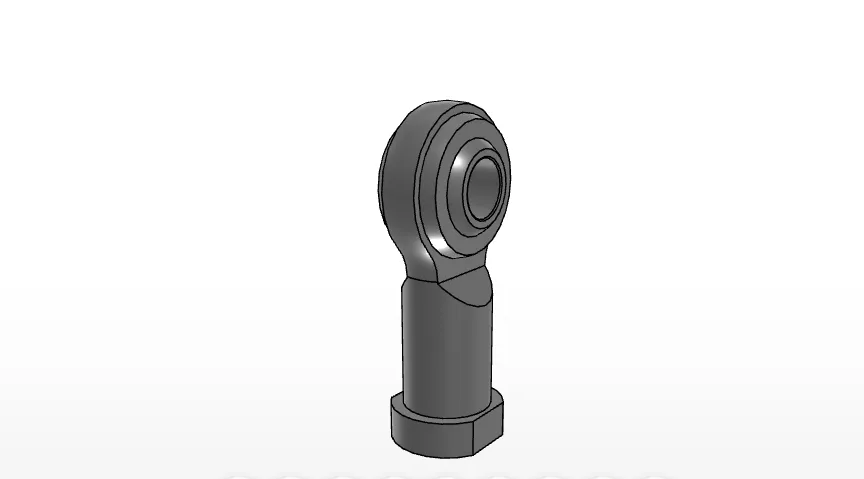

PHS8ECL Is an IKO Metric Rod End
The PHS8ECL is part of the IKO Rod Ends product series. It is described as a metric rod end with female thread and a maintenance-free type, left-handed configuration.
What bearing type is the PHS8ECL?
The listed bearing type is Rod Ends, and its category path is Brand > IKO > Rod Ends.

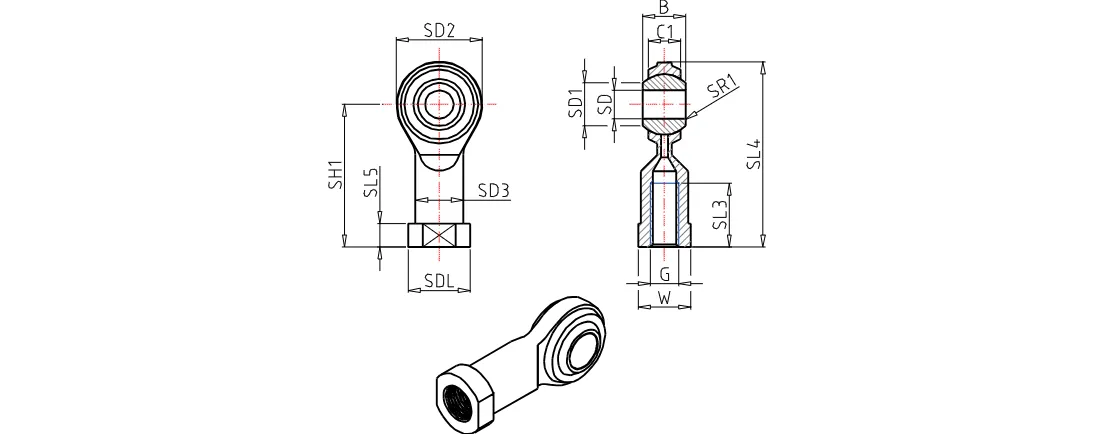

PHS8ECL Includes Listed Metric Dimensions
The supplied product data lists an inside diameter of 8 mm, an M8x1.25 thread, and a total length of 47 mm. Additional dimensions include a 22 mm diameter, 9.00 mm width, 12 mm inner-ring width, and 15.875 mm ball diameter.
What other dimensions are provided for this rod end?
- Diameter: 10.4 mm, 12.5 mm, and 16.0 mm
- Dimensions: 36 mm, 16.0 mm, and 5.0 mm
- Width: 14.0 mm
- r1s min: 0.2 mm
- Mass: 43.0 g
PHS8ECL Lists Load Capacity Values
The supplied specifications list a dynamic load capacity of 14000 N and a static load capacity of 7760 N. These values should be used with the complete product dimensions when reviewing the rod end for a given assembly requirement.
What order and thread details are documented?
The documented order number is PHS8EC, while the product model is PHS8ECL. The thread is specified as M8x1.25, and the product introduction identifies the thread as female and left handed.
