IKO PHSA10L
Rod End, Die-cast Type, Female Thread (Left Handed)
(BRAND)：IKO
(Availability)：In Stock
Order Number
PHSA10
Inside Diameter
10
mm
Thread
M10x1.5
Diameter
28.0
mm
Width
10.5
mm
Width of innerring
14
mm
Diameter
12.9
mm
Total Lenght
57.0
mm
Dimension
43
mm
Length
23
mm
Dimension
6.5
mm
Width
17
mm
Diameter
15
mm
Diameter
19
mm
r1s min
0.2
mm
Diameter of Ball
19.050
mm
Static load capacity
13100
N
Mass
70
g

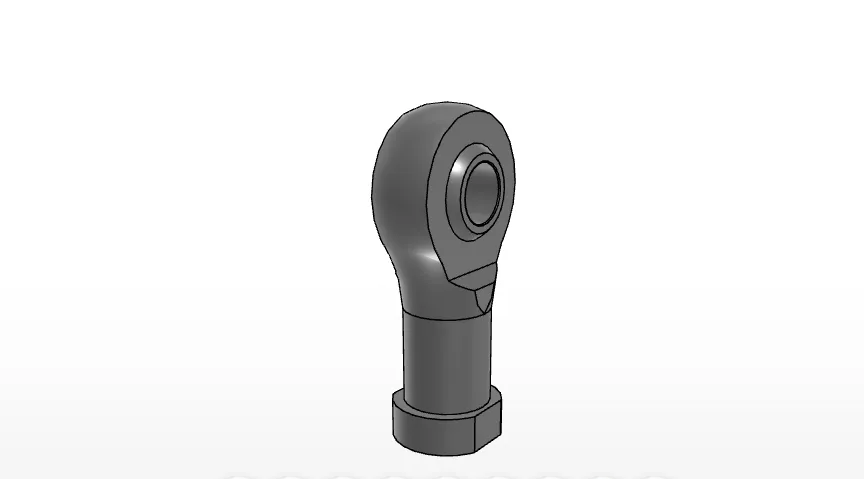

IKO PHSA10L Rod End Overview
What is the PHSA10L?
The PHSA10L is an IKO Rod End listed as a die-cast type with female thread and left-handed thread orientation. Its order number is PHSA10, and it belongs to the Rod Ends product series.

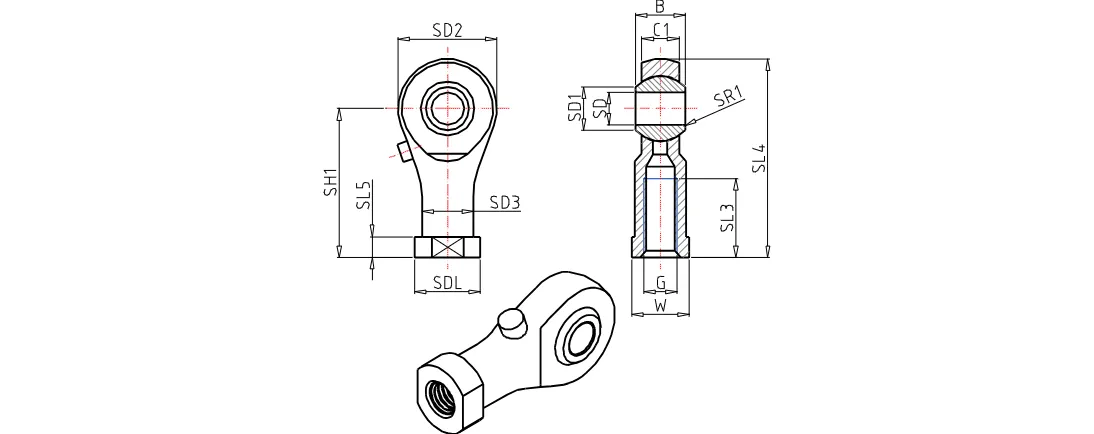

PHSA10L Dimensions and Specifications
What dimensions are supplied for this rod end?
- Inside diameter: 10 mm
- Thread: M10x1.5, left handed
- Diameter: 28.0 mm
- Width: 10.5 mm
- Inner ring width: 14 mm
- Diameter: 12.9 mm
- Total length: 57.0 mm
- Dimension: 43 mm
- Length: 23 mm
- Dimension: 6.5 mm
- Width: 17 mm
- Diameter: 15 mm
- Diameter: 19 mm
- r1s min: 0.2 mm
- Ball diameter: 19.050 mm
PHSA10L Load and Mass Data
What performance-related values are provided?
The supplied product data lists a static load capacity of 13100 N and a mass of 70 g for the PHSA10L. No additional performance classifications or application details are provided in the product data.
