IKO PHSA12
Rod End, Die-cast Type, Female Thread (Right Handed)
(BRAND)：IKO
(Availability)：In Stock
Order Number
PHSA12
Inside Diameter
12
mm
Thread
M12x1.75
Diameter
32.0
mm
Width
12.0
mm
Width of innerring
16
mm
Diameter
15.4
mm
Total Lenght
66.0
mm
Dimension
50
mm
Length
27
mm
Dimension
6.5
mm
Width
19
mm
Diameter
17
mm
Diameter
22
mm
r1s min
0.2
mm
Diameter of Ball
22.225
mm
Static load capacity
16400
N
Mass
105
g

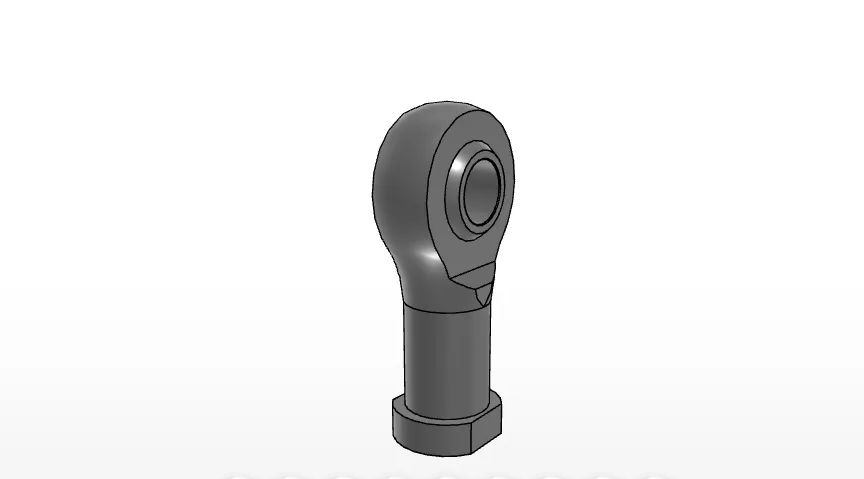

PHSA12 IKO Rod End Overview
The PHSA12 is an IKO rod end from the Rod Ends series. The supplied product title identifies it as a die-cast type rod end with female thread and a right-hand thread orientation.
What is the listed product identity?
The order number is PHSA12, the brand is IKO, and the bearing type is listed as Rod Ends.

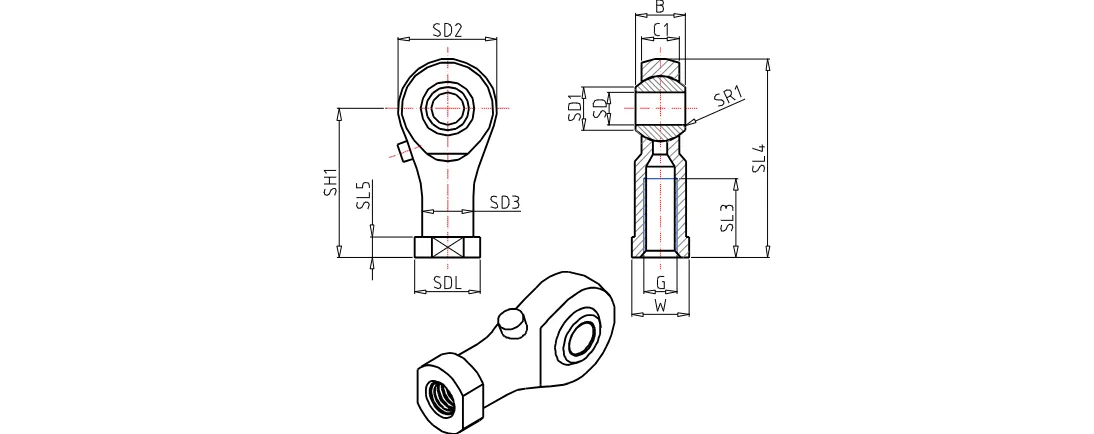

PHSA12 Dimensions and Thread Details
The product data lists the following dimensional details for the PHSA12 rod end:
- Inside diameter: 12 mm
- Thread: M12x1.75, right-hand female thread
- Diameter: 32.0 mm
- Width: 12.0 mm
- Width of inner ring: 16 mm
- Additional diameter values: 15.4 mm, 17 mm, 22 mm, and ball diameter 22.225 mm
- Total length: 66.0 mm
- Dimension: 50 mm
- Length: 27 mm
- Dimension: 6.5 mm
- Width: 19 mm
- r1s minimum: 0.2 mm
What thread and bore size are specified?
The PHSA12 has a 12 mm inside diameter and an M12x1.75 right-hand female thread, according to the supplied product data.
PHSA12 Load and Mass Information
The supplied data includes the rod end's static load capacity and mass, along with its general construction description as a die-cast type.
- Static load capacity: 16,400 N
- Mass: 105 g
- Construction type: Die-cast rod end
- Thread form: Female thread, right handed
What load and mass values are provided?
The PHSA12 is listed with a static load capacity of 16,400 N and a mass of 105 g.
