IKO PHSA16L
Rod End, Die-cast Type, Female Thread (Left Handed)

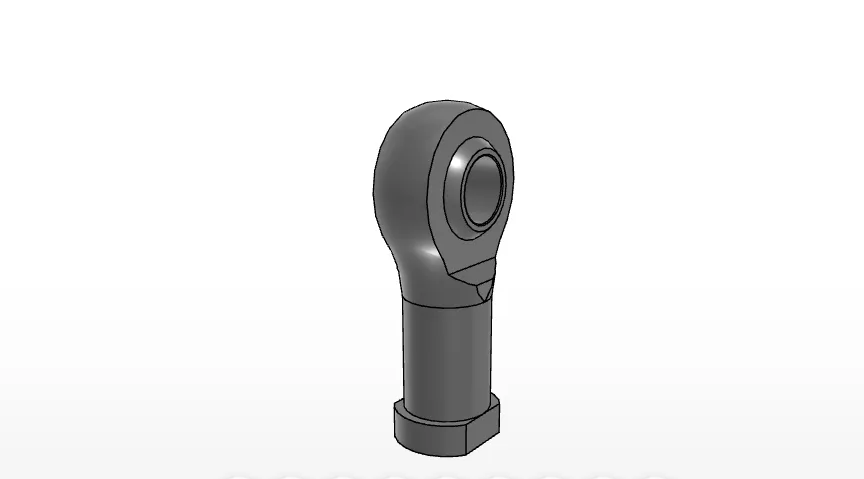

PHSA16L IKO Rod End Overview
The PHSA16L is an IKO rod end in the Rod Ends series, listed as a die-cast type with female left-handed thread. The supplied order information identifies it by order number PHSA16 and bearing type Rod Ends.
What is the thread configuration of the PHSA16L?
The supplied product data lists an M16x2 female thread and identifies the rod end as left handed. The inside diameter is 16 mm.

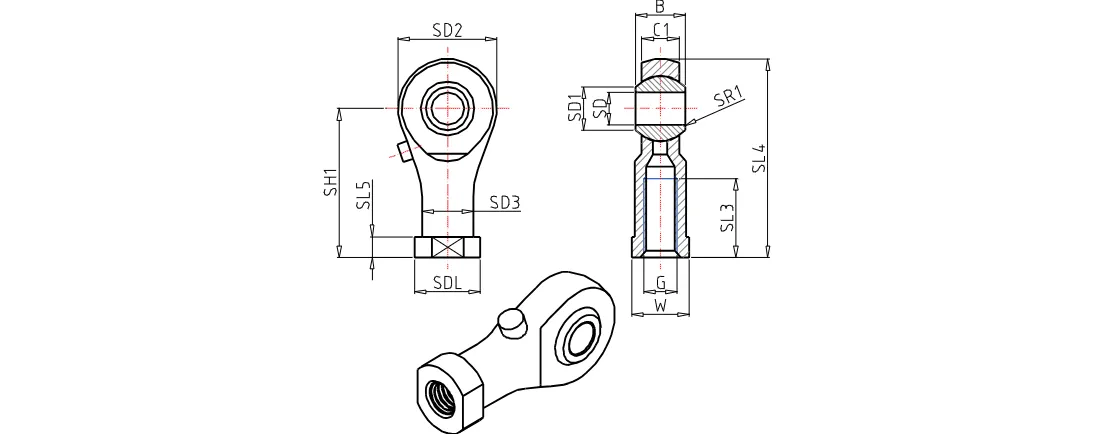

PHSA16L Dimensions and Construction Details
The dimensional data includes a 40.0 mm diameter, 15.0 mm width, 21 mm inner-ring width, 84.0 mm total length, and a 28.575 mm ball diameter. Additional listed dimensions include 19.4 mm, 64 mm, 36 mm, 8.0 mm, 22 mm, 27 mm, and r1s min 0.3 mm.
What dimensional values are provided for this rod end?
- Inside diameter: 16 mm
- Thread: M16x2
- Diameter: 40.0 mm
- Width: 15.0 mm
- Inner-ring width: 21 mm
- Total length: 84.0 mm
- Ball diameter: 28.575 mm
- r1s minimum: 0.3 mm
PHSA16L Rated Load and Mass
The product data provides a static load capacity of 23900 N and a mass of 190 g. These values are presented as supplied specifications for the PHSA16L rod end.
What load and mass information is available?
The listed static load capacity is 23900 N, and the listed mass is 190 g. No additional load rating, material grade, certification, stock status, or application guarantee is included in the supplied data.
