IKO PHSA20
Rod End, Die-cast Type, Female Thread (Right Handed)
The IKO PHSA20 Is a Die-Cast Rod End with Female Thread
The IKO PHSA20 is part of the IKO Rod Ends series and is described as a die-cast type rod end with a right-handed female thread. The listed order number is PHSA20, and the bearing type is recorded as Rod Ends.
What is the thread specification for the PHSA20?
The PHSA20 is listed with an M20x1.5 female thread and a right-hand thread direction. It also has a stated inside diameter of 20 mm.
The PHSA20 Includes Documented Dimensional and Mass Details

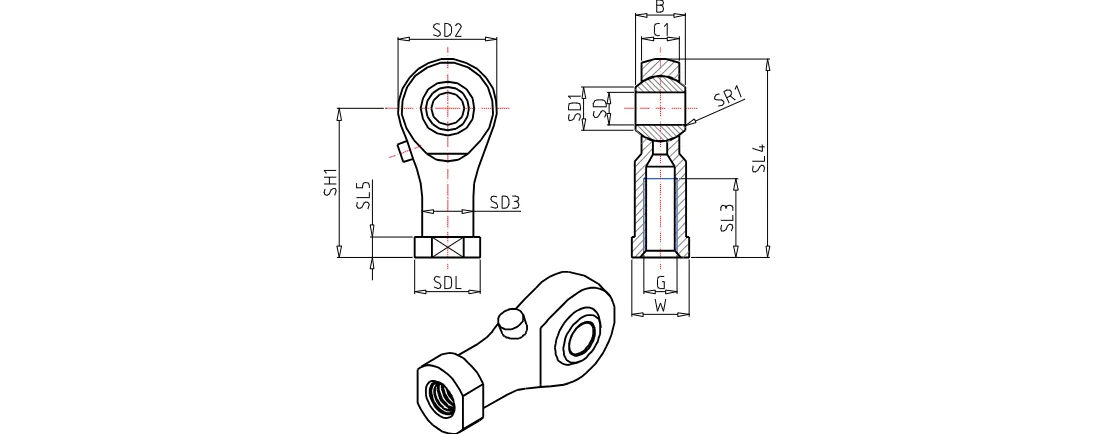

The product data lists multiple dimensions for the rod end, including a 49.0 mm diameter, 18.0 mm width, 25 mm inner-ring width, 101.5 mm total length, and 77 mm dimension. Additional listed values include 43 mm length, 10.0 mm dimension, 30 mm width, and diameters of 24.4 mm, 27 mm, 34 mm, and 34.925 mm.
What other dimensional values are provided?
- r1s minimum: 0.3 mm
- Ball diameter: 34.925 mm
- Mass: 400 g
The PHSA20 Rod End Has a Listed Static Load Capacity
The supplied product data records a static load capacity of 33400 N for the IKO PHSA20. The product is categorized under Brand > IKO > Rod Ends.
What basic product identifiers should be used for selection?
- Model: PHSA20
- Brand: IKO
- Series: Rod Ends
- Description: Rod end, die-cast type, female thread, right handed
