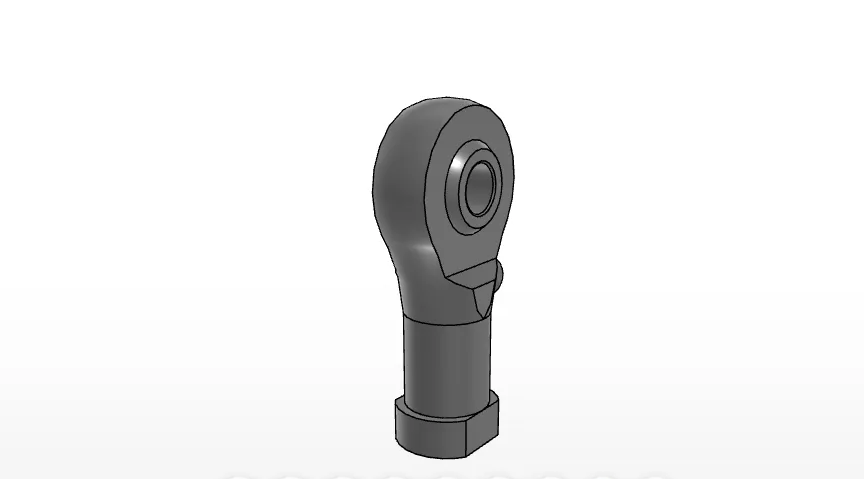

IKO PHSA5L
Rod End, Die-cast Type, Female Thread (Left Handed)
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

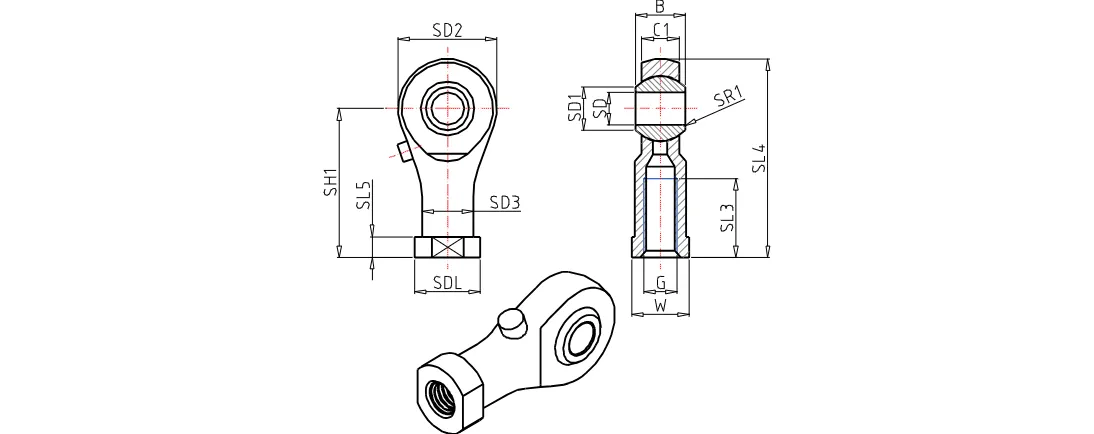

Order Number
PHSA5
Inside Diameter
5
mm
Thread
M5x0.8
Diameter
17.0
mm
Width
6.0
mm
Width of innerring
8
mm
Diameter
7.7
mm
Total Lenght
35.5
mm
Dimension
27
mm
Length
16
mm
Dimension
4.0
mm
Width
9
mm
Diameter
9
mm
Diameter
11
mm
r1s min
0.2
mm
Diameter of Ball
11.112
mm
Static load capacity
5470
N
Mass
17
g
