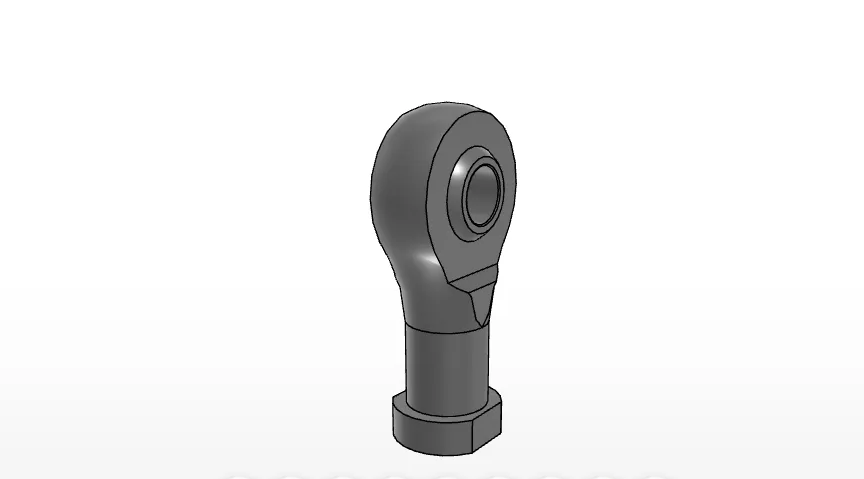

IKO PHSA8L
Rod End, Die-cast Type, Female Thread (Left Handed)
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

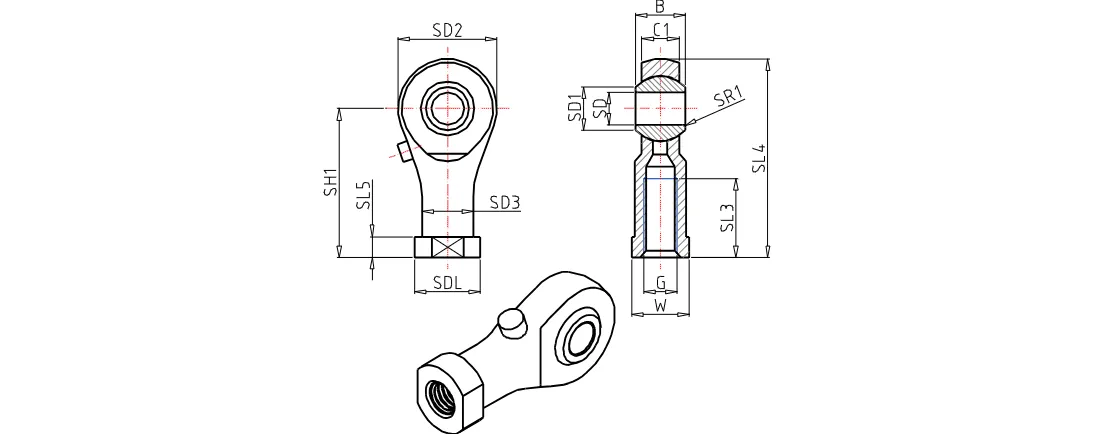

Order Number
PHSA8
Inside Diameter
8
mm
Thread
M8x1.25
Diameter
24.0
mm
Width
9.0
mm
Width of innerring
12
mm
Diameter
10.4
mm
Total Lenght
48.0
mm
Dimension
36
mm
Length
19
mm
Dimension
5.0
mm
Width
14
mm
Diameter
12
mm
Diameter
16
mm
r1s min
0.2
mm
Diameter of Ball
15.875
mm
Static load capacity
10200
N
Mass
45
g
