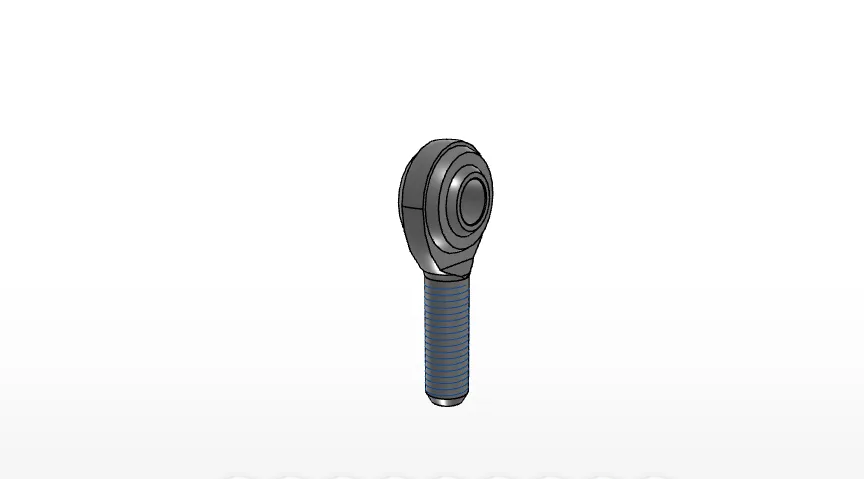

IKO POS10EC
Rod End, Metric, Maintenance Free Type, Male Thread (Right Handed)
(BRAND)：IKO
(Availability)：In Stock

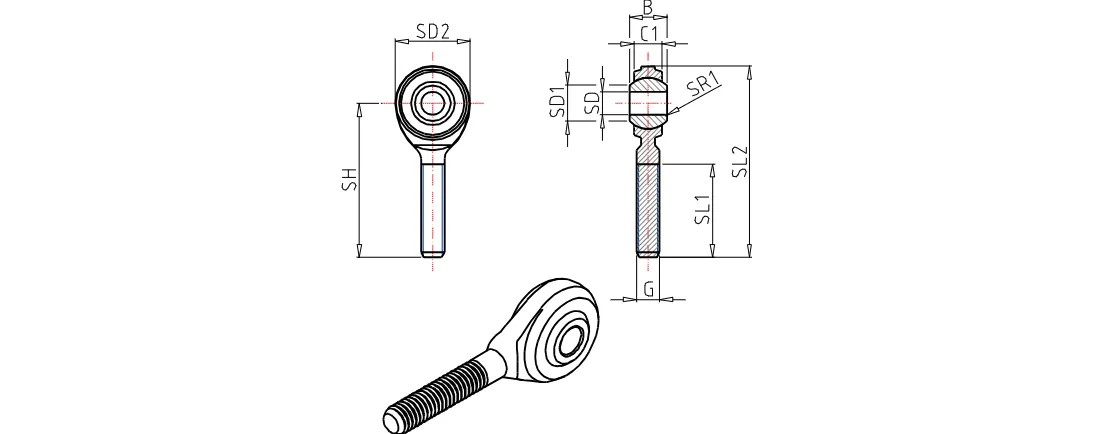

Order Number
POS10EC
Inside Diameter
10
mm
Thread
M10x1.5
mm
Diameter
26
mm
Width
10.50
mm
Width of innerring
14
mm
Diameter
12.9
mm
Total Lenght
61
mm
Dimension
48
mm
Length
29
mm
r1s min
0.2
mm
Diameter of Ball
19.050
mm
Dynamic load capacity
19600
N
Static load capacity
10500
N
Mass
54.0
g
