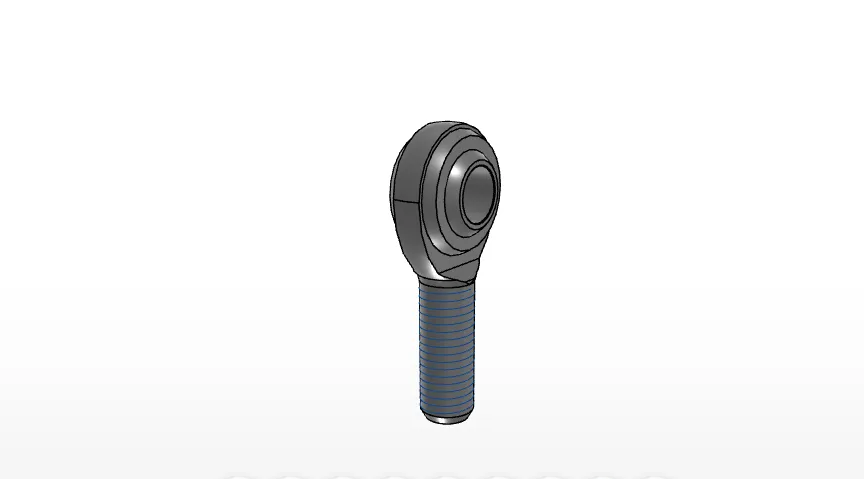

IKO POS14ECL
Rod End, Metric, Maintenance Free Type, Male Thread (Left Handed)
(BRAND)：IKO
(Availability)：In Stock
Order Number
POS14EC
Inside Diameter
14
mm
Thread
M14x2
mm
Diameter
34
mm
Width
13.50
mm
Width of innerring
19
mm
Diameter
16.9
mm
Total Lenght
77
mm
Dimension
60
mm
Length
36
mm
r1s min
0.2
mm
Diameter of Ball
25.400
mm
Dynamic load capacity
33600
N
Static load capacity
17200
N
Mass
126.0
g
