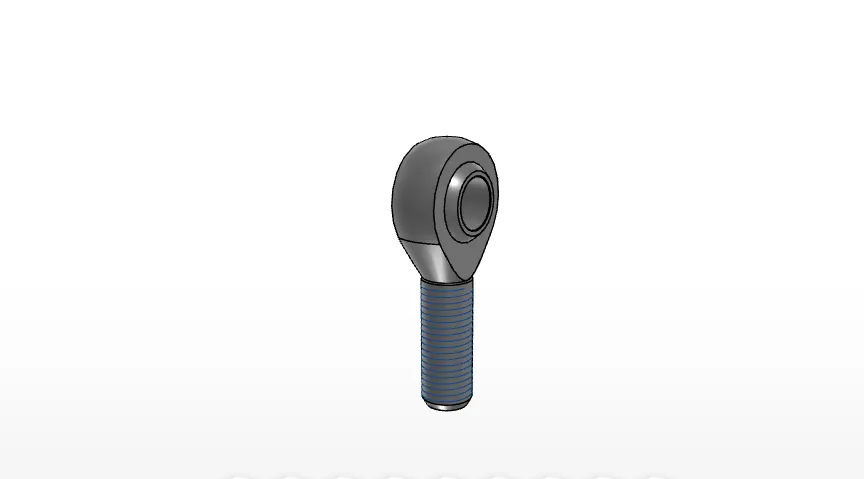

IKO POS16A
Rod End, Metric, Insert Type, Male Thread (Right Handed)
(BRAND)：IKO
(Availability)：In Stock
Order Number
POS16A
Inside Diameter
16
mm
Thread
M16x2
Diameter
38
mm
Width
15.0
mm
Width of innerring
21
mm
Diameter
19.4
mm
Total Lenght
85
mm
Diamension
66
mm
Length
40
mm
r1s min
0.2
mm
Diameter of Ball
28.575
mm
Dynamic load capacity
21000
N
Static load capacity
25400
N
Mass
185.0
g
The IKO POS16A Is a Metric Rod End in the IKO Rod Ends Series
What type of bearing is the POS16A?
The IKO POS16A is listed as a Rod Ends bearing within the IKO Rod Ends product series. Its supplied product title identifies it as a metric, insert-type rod end with male thread.
- Model: POS16A
- Brand: IKO
- Bearing type: Rod Ends
- Series: Rod Ends
- Category path: Brand > IKO > Rod Ends
The POS16A Uses a Right-Hand M16x2 Male Thread and 16 mm Bore

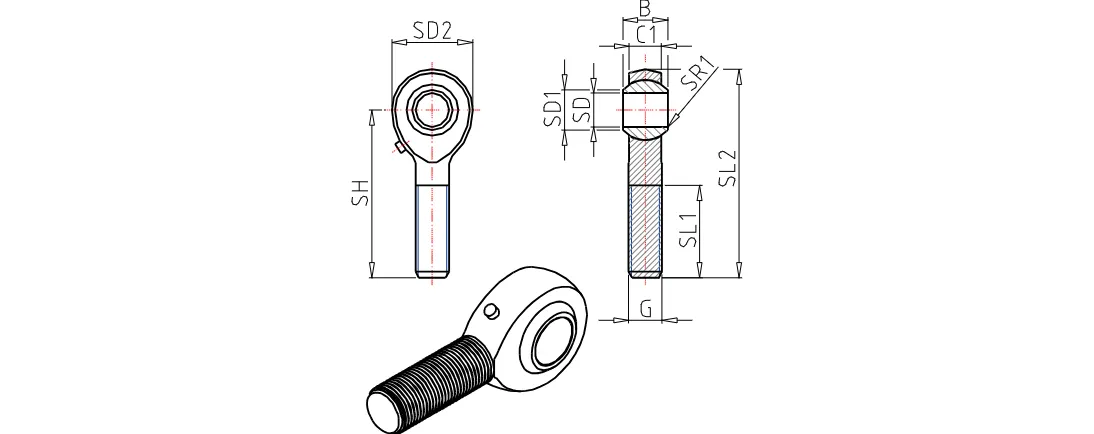

What dimensions are provided for this rod end?
The supplied product data lists the following dimensions and mass for the POS16A. Because some labels repeat or use shortened wording, each value is presented as provided:
- Inside diameter: 16 mm
- Thread: M16x2, right handed
- Diameter: 38 mm
- Width: 15.0 mm
- Width of inner ring: 21 mm
- Diameter: 19.4 mm
- Total length: 85 mm
- Dimension: 66 mm
- Length: 40 mm
- r1s minimum: 0.2 mm
- Diameter of ball: 28.575 mm
- Mass: 185.0 g
The POS16A Is Specified with Dynamic and Static Load Capacities
What load and identification details are included?
The product data identifies the order number as POS16A and provides load capacities for this IKO rod end. These values can be compared against the requirements of a selected application.
- Order number: POS16A
- Dynamic load capacity: 21,000 N
- Static load capacity: 25,400 N
- Design description: rod end, metric, insert type, male thread, right handed
Additional material, certification, stock, warranty, application, or manufacturer-performance details are not included in the supplied product data.
