IKO POS16EC
Rod End, Metric, Maintenance Free Type, Male Thread (Right Handed)

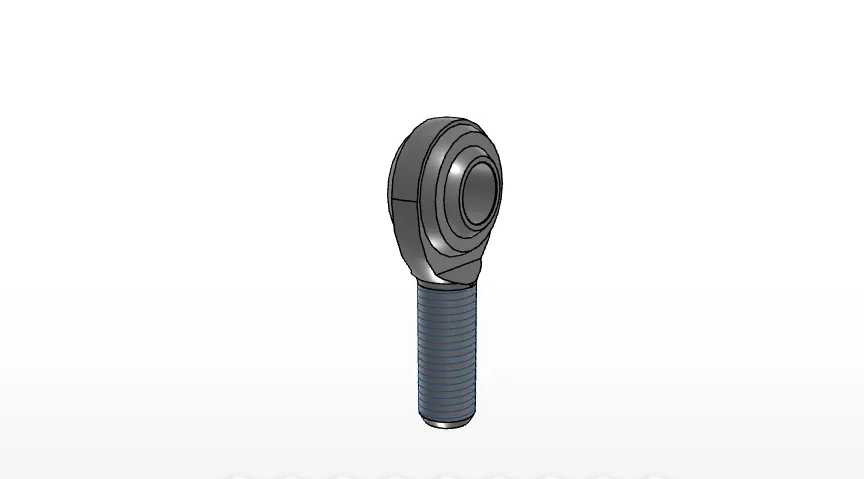

POS16EC IKO Rod End Overview
The POS16EC is an IKO rod end in the Rod Ends product series. It is described as a metric, maintenance-free type with male, right-handed thread. The listed bearing type is Rod Ends, and the category path is Brand > IKO > Rod Ends.
What is the POS16EC?
The POS16EC is a metric rod end with a 16 mm inside diameter and an M16x2 male right-hand thread. The supplied product data identifies it as a maintenance-free rod end; service or relubrication requirements should be confirmed against the manufacturer information for the intended use.

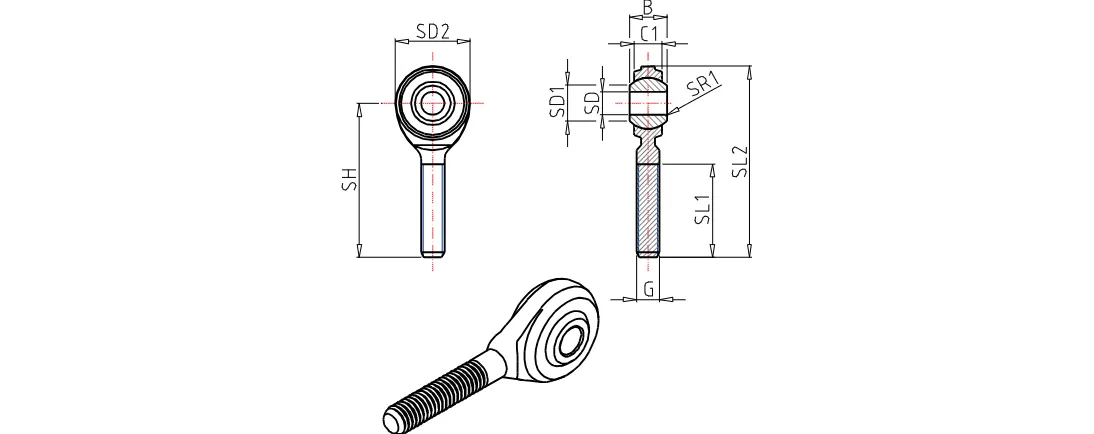

POS16EC Dimensions and Specification
- Inside diameter: 16 mm
- Thread: M16x2 mm, right-handed male thread
- Diameter: 38 mm; additional listed diameter: 19.4 mm
- Width: 15.00 mm
- Inner ring width: 21 mm
- Total length: 85 mm
- Dimension: 66 mm
- Length: 40 mm
- r1s minimum: 0.2 mm
- Ball diameter: 28.575 mm
- Mass: 185.0 g
What are the listed load capacities?
The supplied data lists a dynamic load capacity of 42,000 N and a static load capacity of 21,100 N. These values are product data points and should be used with the applicable engineering or manufacturer selection criteria.
POS16EC Product Identification
The order number is POS16EC, the brand is IKO, and the product series is Rod Ends. The descriptive title identifies the item as a rod end, metric, maintenance-free type, with male thread and right-handed thread orientation.
How can the supplied details help identify this rod end?
The model, brand, series, bore size, thread size, thread orientation, dimensions, mass, and load capacities can be compared with an existing rod end or parts list. If installation, fit, or suitability details are not shown in the supplied data, those requirements should be verified independently before selection.
