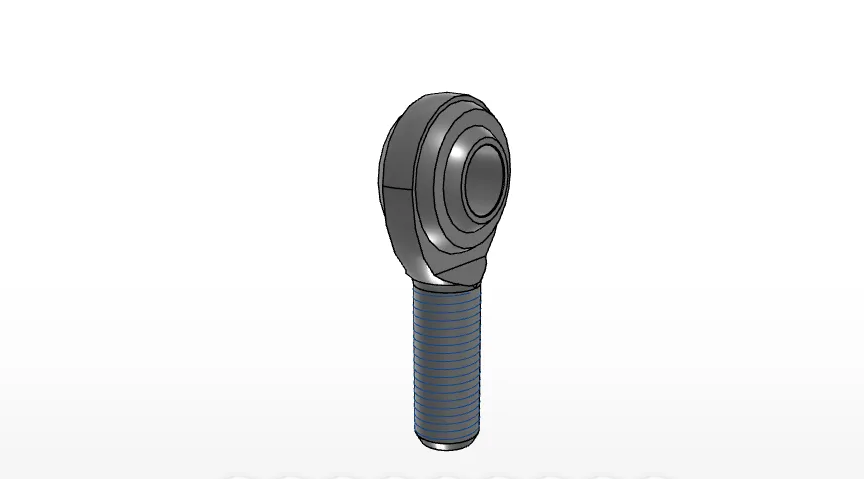

IKO POS16ECL
Rod End, Metric, Maintenance Free Type, Male Thread (Left Handed)
(BRAND)：IKO
(Availability)：In Stock
Order Number
POS16EC
Inside Diameter
16
mm
Thread
M16x2
mm
Diameter
38
mm
Width
15.00
mm
Width of innerring
21
mm
Diameter
19.4
mm
Total Lenght
85
mm
Dimension
66
mm
Length
40
mm
r1s min
0.2
mm
Diameter of Ball
28.575
mm
Dynamic load capacity
42000
N
Static load capacity
21100
N
Mass
185.0
g
The IKO POS16ECL Is a Metric Rod End
What basic product identity does the supplied data confirm?
The POS16ECL is an IKO rod end in the Rod Ends product series. The supplied title identifies it as a metric, maintenance-free type with male thread and a left-handed thread arrangement.
- Model: POS16ECL
- Brand: IKO
- Bearing type: Rod Ends
- Category path: Brand > IKO > Rod Ends

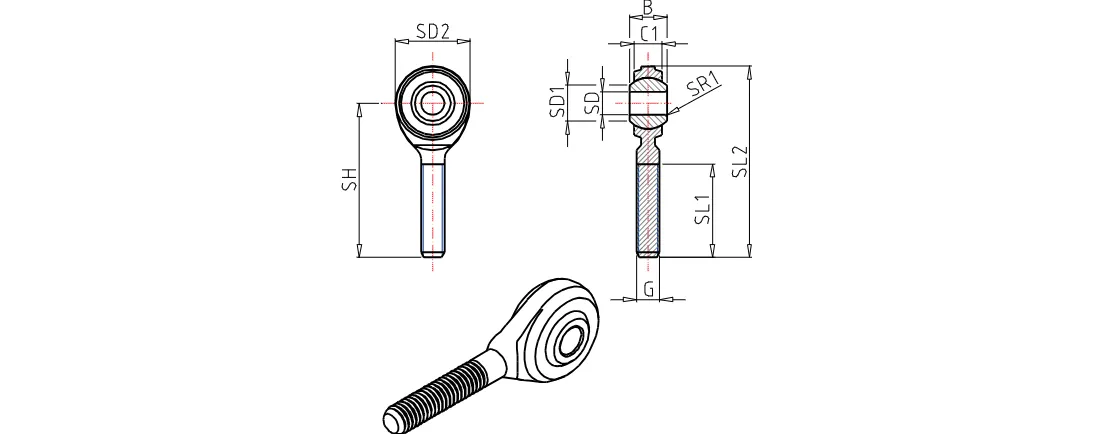

The POS16ECL Has Supplied Metric Dimensions
What dimensions are listed for this rod end?
The product data lists the following measurements for the POS16ECL:
- Inside diameter: 16 mm
- Thread: M16x2 mm
- Diameter: 38 mm
- Width: 15.00 mm
- Inner-ring width: 21 mm
- Diameter: 19.4 mm
- Total length: 85 mm
- Dimension: 66 mm
- Length: 40 mm
- r1s minimum: 0.2 mm
- Ball diameter: 28.575 mm
- Mass: 185.0 g
The Listed Load Ratings and Order Detail Support Identification
What order and load information is provided?
The supplied right-side data records the order number as POS16EC, while the requested model is POS16ECL. The listed load ratings are:
- Dynamic load capacity: 42000 N
- Static load capacity: 21100 N
Use the stated dimensions, thread specification, brand, series, and load values to verify the part against the supplied product record.
