IKO POS4
Rod End, Metric, Insert Type, Male Thread (Right Handed)
(BRAND)：IKO
(Availability)：In Stock
Order Number
POS4
Inside Diameter
4
mm
Thread
M4x0.7
Diameter
14
mm
Width
5.3
mm
Width of innerring
7
mm
Diameter
6.5
mm
Total Lenght
37
mm
Diamension
30
mm
Length
17
mm
r1s min
0.2
mm
Diameter of Ball
9.525
mm
Dynamic load capacity
2480
N
Static load capacity
2060
N
Mass
8.1
g
IKO POS4 Rod End Product Overview
What type of rod end is the POS4?
The IKO POS4 is part of the Rod Ends series and is described as a metric, insert-type rod end with male thread. The listed thread is right handed.
- Model: POS4
- Brand: IKO
- Series: Rod Ends
- Bearing type: Rod Ends
- Order number: POS4

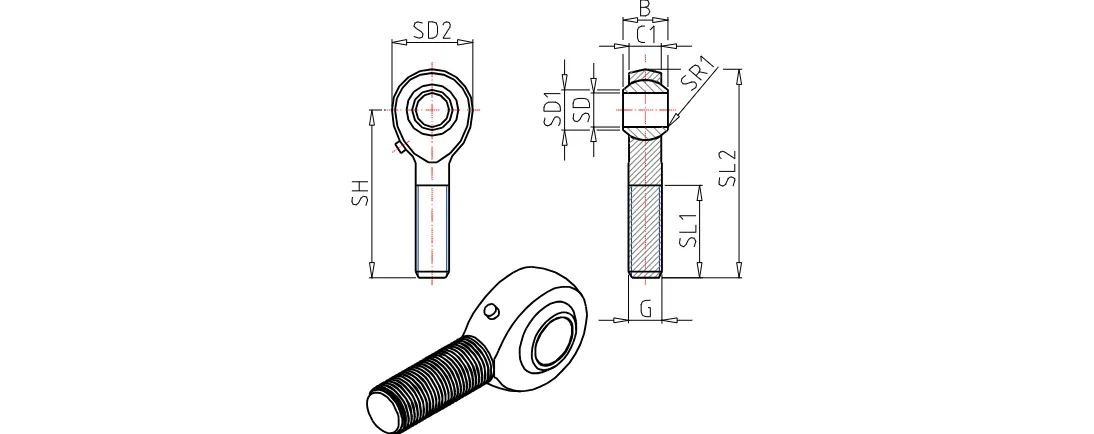

POS4 Dimensions and Specifications
What dimensions and capacities are listed for the POS4?
The supplied product data lists the following measurements and load capacities for the IKO POS4:
- Inside diameter: 4 mm
- Thread: M4x0.7
- Diameter: 14 mm
- Width: 5.3 mm
- Width of inner ring: 7 mm
- Diameter: 6.5 mm
- Total length: 37 mm
- Dimension: 30 mm
- Length: 17 mm
- r1s min: 0.2 mm
- Diameter of ball: 9.525 mm
- Dynamic load capacity: 2480 N
- Static load capacity: 2060 N
- Mass: 8.1 g
POS4 Rod End Identification Details
How is the POS4 classified in the supplied product information?
The product category path is Brand > IKO > Rod Ends. Its detail-page title identifies it as a rod end, metric, insert type, and male thread with right-handed threading. No additional material, certification, stock, warranty, or application information is supplied.
- Brand: IKO
- Model: POS4
- Product family: Rod Ends
- Configuration: Metric insert type with male right-hand thread
