IKO POS4EC
Rod End, Metric, Maintenance Free Type, Male Thread (Right Handed)
POS4EC IKO Rod End Overview
The POS4EC is an IKO Rod End with a metric, maintenance-free design and right-handed male thread. It is listed within the Rod Ends bearing category and has an order number of POS4EC.
What are the basic identification details?
- Model: POS4EC
- Brand: IKO
- Series: Rod Ends
- Type: Metric, maintenance-free, male thread, right handed

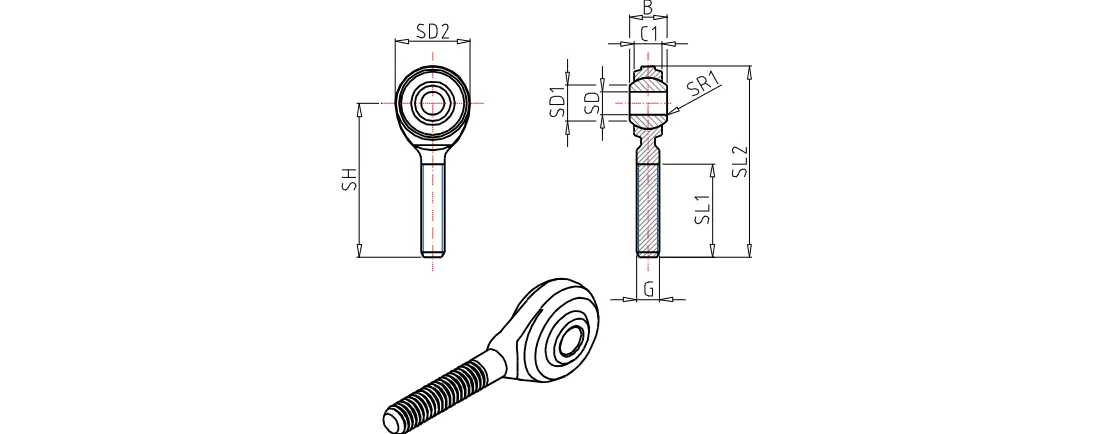

POS4EC Dimensions and Thread Specifications
The POS4EC has an inside diameter of 4 mm and an M4x0.7 mm male thread. Additional dimensional data includes a 14 mm diameter, 5.30 mm width, 7 mm inner-ring width, and 6.5 mm diameter measurement.
What dimensional values are provided for this rod end?
- Total length: 37 mm
- Dimension: 30 mm
- Length: 17 mm
- Ball diameter: 9.525 mm
- r1s minimum: 0.2 mm
POS4EC Load Capacity and Mass
The supplied product data lists a dynamic load capacity of 4950 N and a static load capacity of 2060 N. The POS4EC rod end has a recorded mass of 8.1 g.
What performance-related figures are stated?
The only load ratings and physical weight provided in the product data are the 4950 N dynamic load capacity, 2060 N static load capacity, and 8.1 g mass. No additional performance, certification, application, or stock information is supplied.
