IKO POS5A
Rod End, Metric, Insert Type, Male Thread (Right Handed)
(BRAND)：IKO
(Availability)：In Stock
Order Number
POS5
Inside Diameter
5
mm
Thread
M5x0.8
Diameter
16
mm
Width
6.0
mm
Width of innerring
8
mm
Diameter
7.7
mm
Total Lenght
41
mm
Diamension
33
mm
Length
20
mm
r1s min
0.2
mm
Diameter of Ball
11.112
mm
Dynamic load capacity
3270
N
Static load capacity
3340
N
Mass
12.5
g
POS5A IKO Rod End Product Introduction
The POS5A is an IKO Rod Ends product listed as a metric, insert-type rod end with male right-hand thread. The order number is POS5, and the supplied data identifies the bearing type as rod ends.
What are the basic identification details for the POS5A?
- Model: POS5A
- Brand: IKO
- Product series: Rod Ends
- Category path: Brand > IKO > Rod Ends
- Description: Rod End, Metric, Insert Type, Male Thread (Right Handed)

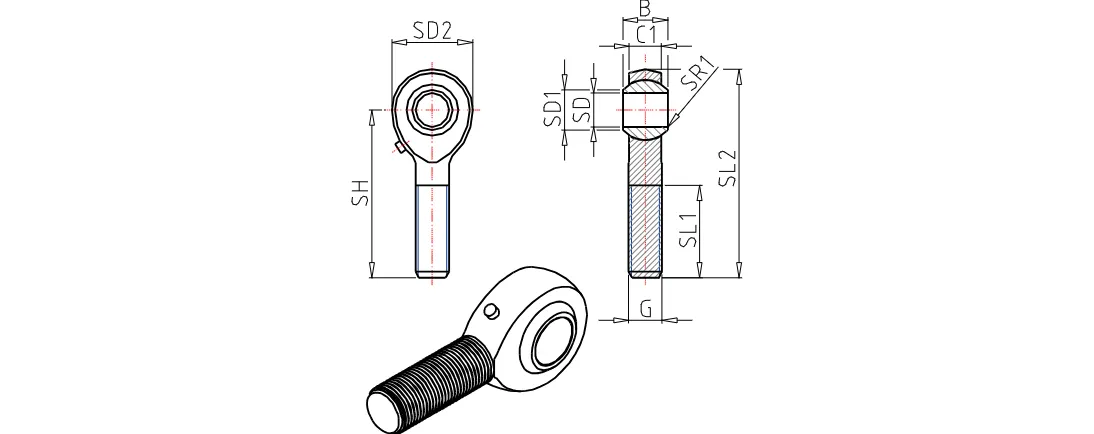

POS5A Dimensions and Mechanical Specifications
The supplied dimensional data lists a 5 mm inside diameter and M5x0.8 male thread. Additional specifications include a 16 mm diameter, 6.0 mm width, 8 mm inner-ring width, 7.7 mm diameter, 41 mm total length, 33 mm dimension, 20 mm length, and 0.2 mm minimum r1s.
What ball and load-rating information is provided?
- Diameter of ball: 11.112 mm
- Dynamic load capacity: 3270 N
- Static load capacity: 3340 N
- Mass: 12.5 g
POS5A Configuration Summary
The POS5A is presented as a metric rod end with an insert-type design and male right-handed M5x0.8 thread. The following summary reflects only the configuration and measurements supplied in the product data.
What measurements should be reviewed for selection?
- Confirm the 5 mm inside diameter against the mating component.
- Review the M5x0.8 male right-hand thread and associated length dimensions.
- Compare the listed body, width, ball, and edge-radius measurements with the installation requirements.
- Use the supplied dynamic and static load capacities as part of technical evaluation.
