IKO POS5EC
Rod End, Metric, Maintenance Free Type, Male Thread (Right Handed)
IKO POS5EC Rod End Overview
The POS5EC is an IKO rod end in the Rod Ends product series. It is described as a metric, maintenance-free type with male thread and a right-hand thread direction.
What basic identifiers apply to this rod end?
The listed order number is POS5EC, the brand is IKO, and the bearing type is Rod Ends.

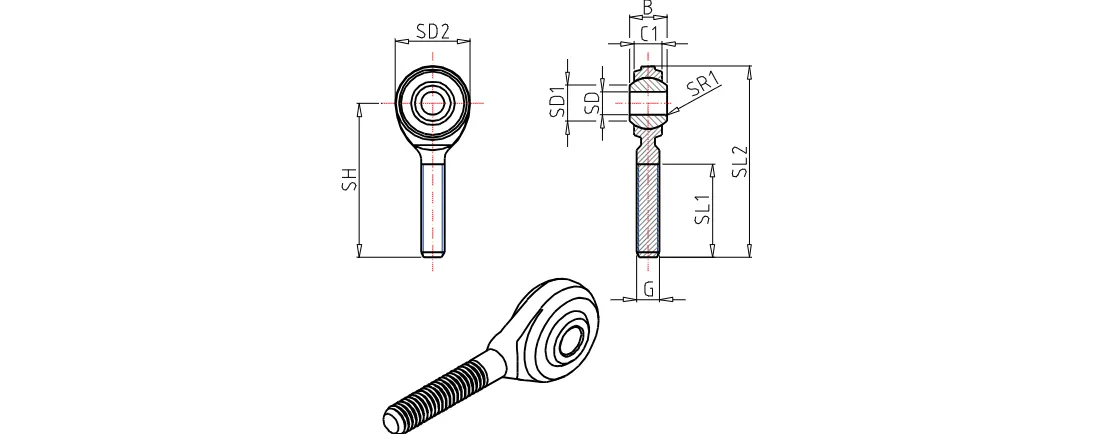

POS5EC Dimensions and Construction Data
The supplied dimensional data identifies the rod end's bore, thread, head, width, ball, and related geometric values. All dimensions below are taken directly from the product data.
- Inside diameter: 5 mm
- Thread: M5 x 0.8 mm, male, right handed
- Diameter: 16 mm
- Width: 6.00 mm
- Width of inner ring: 8 mm
- Diameter: 7.7 mm
- Total length: 41 mm
- Dimension: 33 mm
- Length: 20 mm
- r1s min: 0.2 mm
- Diameter of ball: 11.112 mm
What is the mass of the POS5EC?
The listed mass of the IKO POS5EC rod end is 12.5 g.
POS5EC Load Ratings
The product data includes dynamic and static load capacity values for the POS5EC rod end. These ratings can be used when comparing the part against specified design requirements.
- Dynamic load capacity: 6540 N
- Static load capacity: 3340 N
What rod end style is described by the product information?
The POS5EC is described as a metric, maintenance-free type rod end with male thread, and the listed thread is right handed.
