IKO POS5ECL
Rod End, Metric, Maintenance Free Type, Male Thread (Left Handed)
(BRAND)：IKO
(Availability)：In Stock
Order Number
POS5EC
Inside Diameter
5
mm
Thread
M5x0.8
mm
Diameter
16
mm
Width
6.00
mm
Width of innerring
8
mm
Diameter
7.7
mm
Total Lenght
41
mm
Dimension
33
mm
Length
20
mm
r1s min
0.2
mm
Diameter of Ball
11.112
mm
Dynamic load capacity
6540
N
Static load capacity
3340
N
Mass
12.5
g
The IKO POS5ECL Is a Metric Male-Thread Rod End
What basic identification applies to the POS5ECL?
The POS5ECL is listed under IKO rod ends and is described as a metric, maintenance-free type with male thread and a left-handed thread arrangement. Its order number is shown as POS5EC.
- Brand: IKO
- Series: Rod Ends
- Bearing type: Rod Ends
- Inside diameter: 5 mm
- Thread: M5x0.8 mm, male, left handed

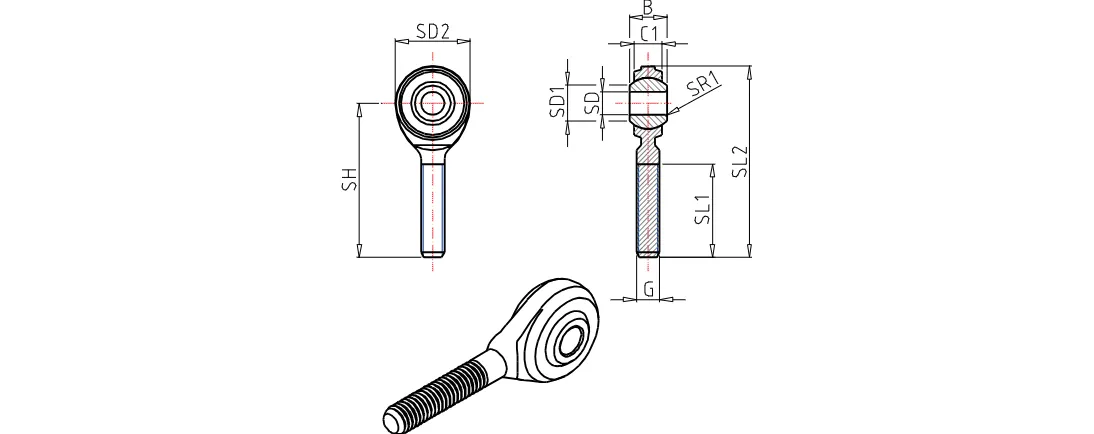

The POS5ECL Has Documented Metric Dimensions
What dimensional details are provided for this rod end?
The product data records the following measurements for selecting or comparing the POS5ECL:
- Diameter: 16 mm
- Width: 6.00 mm
- Inner-ring width: 8 mm
- Diameter: 7.7 mm
- Total length: 41 mm
- Dimension: 33 mm
- Length: 20 mm
- r1s min.: 0.2 mm
- Ball diameter: 11.112 mm
- Mass: 12.5 g
The POS5ECL Includes Stated Load Capacity Values
What load and ordering information is available from the supplied data?
The supplied product data lists the rod end's dynamic load capacity as 6540 N and its static load capacity as 3340 N. No additional certification, stock, guarantee, or application claims are included in the source data.
- Confirm the model: POS5ECL.
- Verify the listed order number: POS5EC.
- Review the thread, bore, dimensional, mass, and load values before selection.
