IKO POS5LA
Rod End, Metric, Insert Type, Male Thread (Left Handed)
(BRAND)：IKO
(Availability)：In Stock
Order Number
POS5
Inside Diameter
5
mm
Thread
M5x0.8
Diameter
16
mm
Width
6.0
mm
Width of innerring
8
mm
Diameter
7.7
mm
Total Lenght
41
mm
Diamension
33
mm
Length
20
mm
r1s min
0.2
mm
Diameter of Ball
11.112
mm
Dynamic load capacity
3270
N
Static load capacity
3340
N
Mass
12.5
g
POS5LA IKO Rod End Specifications
What type and size is the POS5LA?
The IKO POS5LA is a metric rod end in the Rod Ends series. It is an insert-type male rod end with left-hand thread and a 5 mm inside diameter.
- Order number: POS5LA
- Brand: IKO
- Bearing type: Rod Ends
- Inside diameter: 5 mm
- Thread: M5 x 0.8, left handed
- Ball diameter: 11.112 mm
- Mass: 12.5 g

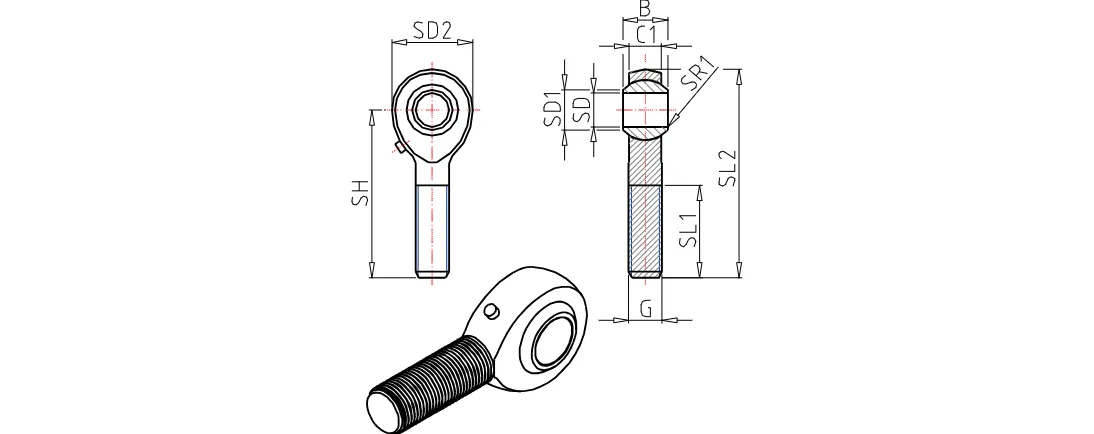

POS5LA Dimensional Details
What dimensions are listed for this rod end?
The product data lists the following measurements for the POS5LA. Dimensions should be checked against the required assembly configuration before selection.
- Diameter: 16 mm
- Width: 6.0 mm
- Inner-ring width: 8 mm
- Diameter: 7.7 mm
- Total length: 41 mm
- Dimension: 33 mm
- Length: 20 mm
- r1s minimum: 0.2 mm
POS5LA Load Capacity and Product Identification
What load ratings and identifying details are provided?
The supplied product data identifies the POS5LA as an IKO metric male-thread rod end and provides dynamic and static load capacity values.
- Dynamic load capacity: 3270 N
- Static load capacity: 3340 N
- Category path: Brand > IKO > Rod Ends
- Description: Rod End, Metric, Insert Type, Male Thread (Left Handed)
