IKO POS6A
Rod End, Metric, Insert Type, Male Thread (Right Handed)
POS6A IKO Rod End for Metric Installations
The POS6A is an IKO rod end in the Rod Ends series. It is listed as an insert type with male, right-hand metric thread. The supplied specifications identify a 6 mm inside diameter and an M6x1 thread size.
What are the basic POS6A identifiers?
The order number is POS6A, the brand is IKO, and the bearing type is listed as Rod Ends. Its product description is rod end, metric, insert type, male thread, right handed.
POS6A Dimensions and Build Details

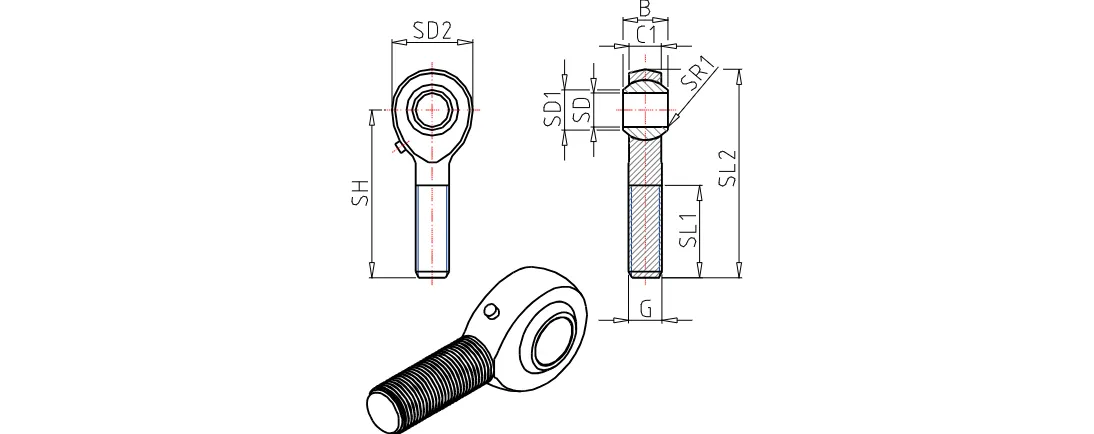

The POS6A rod end has an 18 mm diameter, 6.8 mm width, 9 mm inner-ring width, and a 9.0 mm diameter dimension. The total length is 45 mm, with a 36 mm dimension, 22 mm length, and a minimum r1s value of 0.2 mm. The ball diameter is 12.700 mm.
What measurements should be reviewed before selection?
- Inside diameter: 6 mm
- Thread: M6x1, male, right hand
- Ball diameter: 12.700 mm
- Total length: 45 mm
- Mass: 19.0 g
POS6A Load Ratings and Product Specifications
The supplied product data lists a dynamic load capacity of 4200 N and a static load capacity of 4730 N. These values can be compared with the rod end requirements of the intended assembly using only the dimensions and ratings provided.
What load capacity information is available for the POS6A?
The POS6A is specified with a 4200 N dynamic load capacity and a 4730 N static load capacity. No additional certifications, material grades, stock status, or application claims are included in the supplied data.
