IKO POS6EC
Rod End, Metric, Maintenance Free Type, Male Thread (Right Handed)
(BRAND)：IKO
(Availability)：In Stock
Order Number
POS6EC
Inside Diameter
6
mm
Thread
M6x1
mm
Diameter
18
mm
Width
6.75
mm
Width of innerring
9
mm
Diameter
9.0
mm
Total Lenght
45
mm
Dimension
36
mm
Length
22
mm
r1s min
0.2
mm
Diameter of Ball
12.700
mm
Dynamic load capacity
8410
N
Static load capacity
4730
N
Mass
19.0
g
IKO POS6EC Rod End for Metric Installations
What type of rod end is the POS6EC?
The IKO POS6EC is part of the Rod Ends product series. The supplied product information identifies it as a metric, maintenance-free type rod end with male thread and a right-handed thread direction.
- Brand: IKO
- Model: POS6EC
- Bearing type: Rod Ends
- Category path: Brand > IKO > Rod Ends

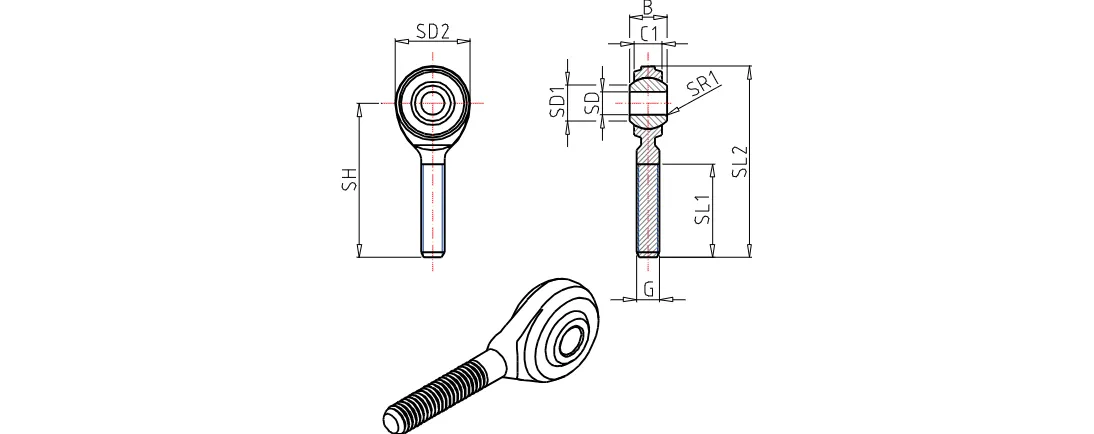

POS6EC Dimensions and Thread Specification
What dimensions are listed for this rod end?
The POS6EC has an inside diameter of 6 mm and an M6x1 mm right-hand male thread. Additional listed dimensions include an 18 mm diameter, 6.75 mm width, 9 mm inner-ring width, 9.0 mm diameter, 45 mm total length, 36 mm dimension, and 22 mm length.
- Ball diameter: 12.700 mm
- r1s minimum: 0.2 mm
- Mass: 19.0 g
Stated Load Ratings for the IKO POS6EC
What load capacity data is provided?
The product data lists a dynamic load capacity of 8410 N and a static load capacity of 4730 N. These values describe the ratings supplied for this IKO rod end and should be used according to the available product specification.
Order number: POS6EC
