INA 203-XL-KRR
Insert Ball Bearings and Belt Tension Pulleys

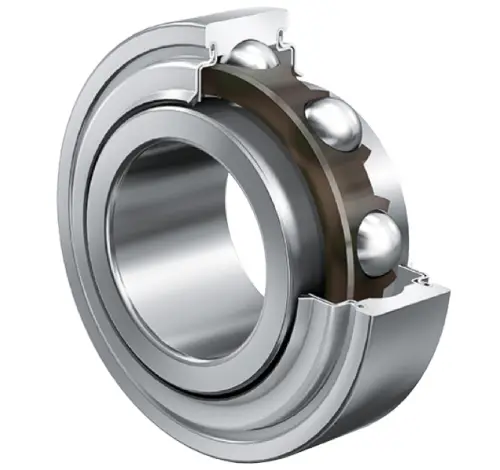

Radial insert ball bearings 2..-KRR, cylindrical outer ring, inner ring for fit, R seals on both sides
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

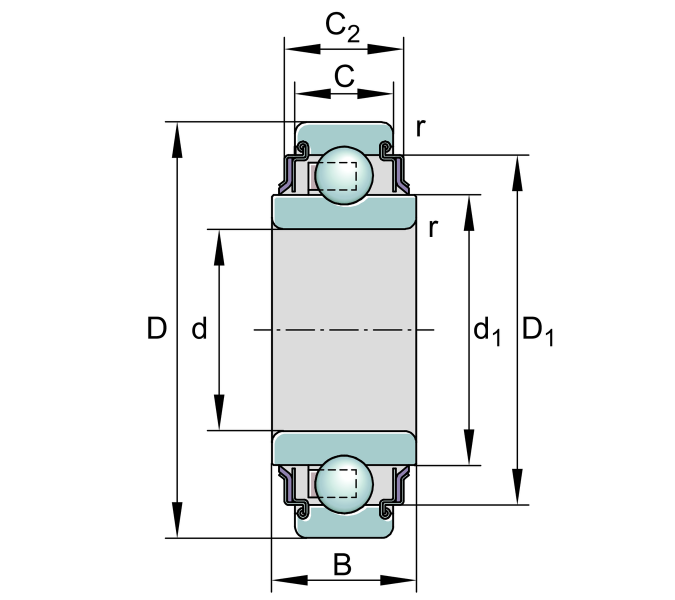

Main Dimensions & Performance Data
d
17 mm
Bore diameter
D
40 mm
Outside diameter
B
18.3 mm
Width
Cr
9,800 N
Basic dynamic load rating, radial
C0r
4,750 N
Basic static load rating, radial
≈m
0.07 kg
Weight
