INA AM130
Precision Lock nut

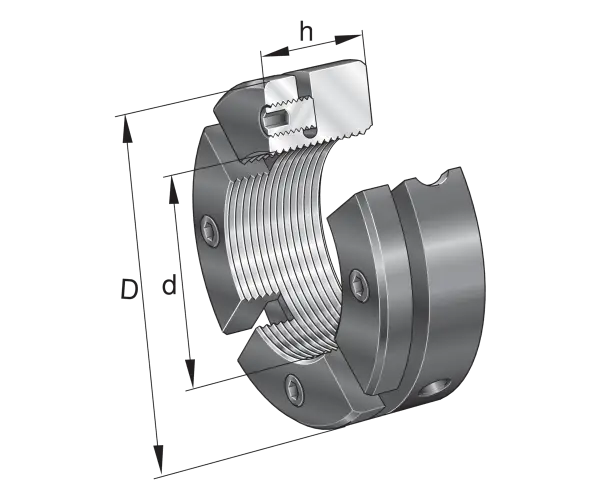

Precision locknuts AM, segments for clamping
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

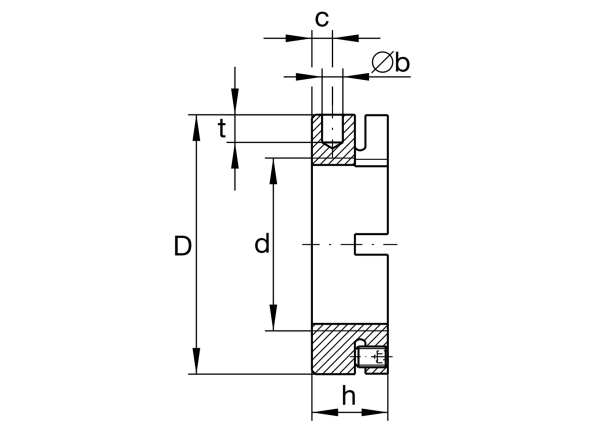

Main Dimensions & Performance Data
d
M130X2
Thread
D
165 mm
Outside diameter
h
30 mm
Height
FaB
900,000 N
Breaking load, axial
ML
1,600 Nm
Breakawag
MAL
250 Nm
Mounting torque reference
Mm
92 kg*cm2
Mass moment of inertia
≈m
1.67 kg
Weight

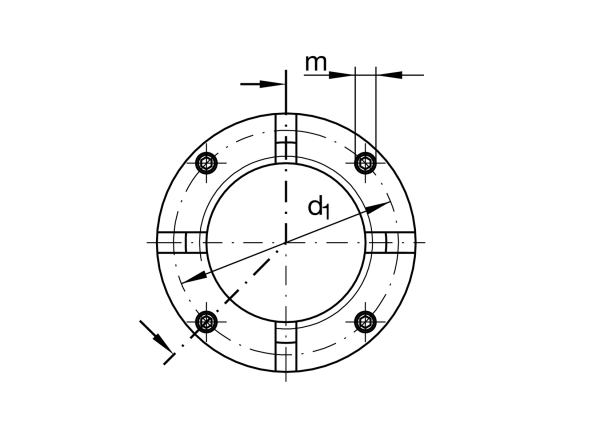

Mounting dimensions
Mm
20 Nm
Mounting torque set screw
