INA AM35/58
Precision Lock nut
Precision locknuts AM, segments for clamping
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

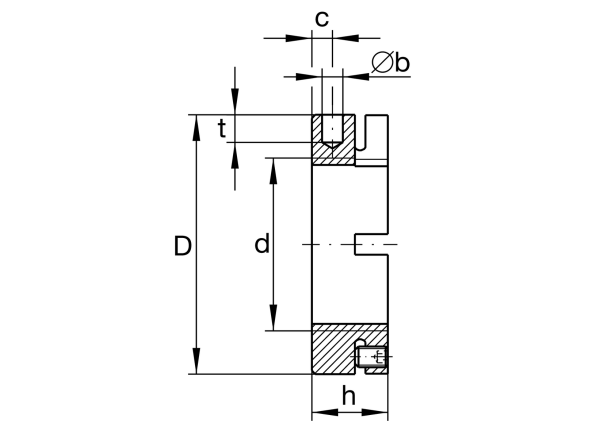

Main Dimensions & Performance Data
d
M35X1,5
Thread
D
58 mm
Outside diameter
h
20 mm
Height
FaB
280,000 N
Breaking load, axial
ML
90 Nm
Breakawag
MAL
40 Nm
Mounting torque reference
Mm
1.3 kg*cm2
Mass moment of inertia
≈m
208 g
Weight

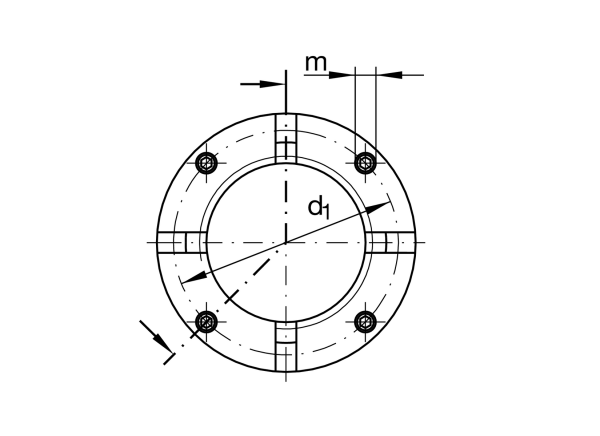

Mounting dimensions
Mm
5 Nm
Mounting torque set screw
