INA AM40/85
Precision Lock nut
Precision locknuts AM, segments for clamping
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

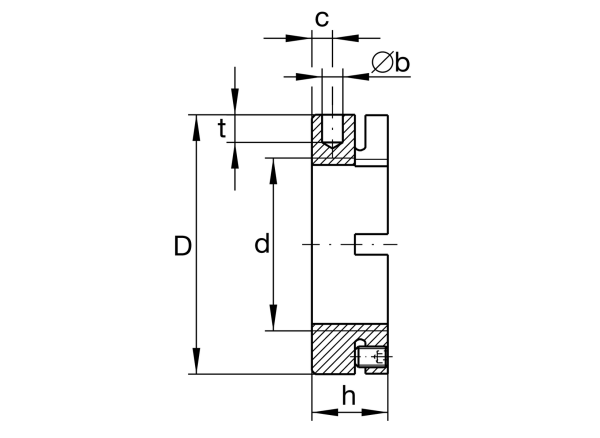

Main Dimensions & Performance Data
d
M40X1,5
Thread
D
85 mm
Outside diameter
h
32 mm
Height
FaB
570,000 N
Breaking load, axial
ML
120 Nm
Breakawag
MAL
55 Nm
Mounting torque reference
Mm
7.6 kg*cm2
Mass moment of inertia
≈m
0.788 kg
Weight

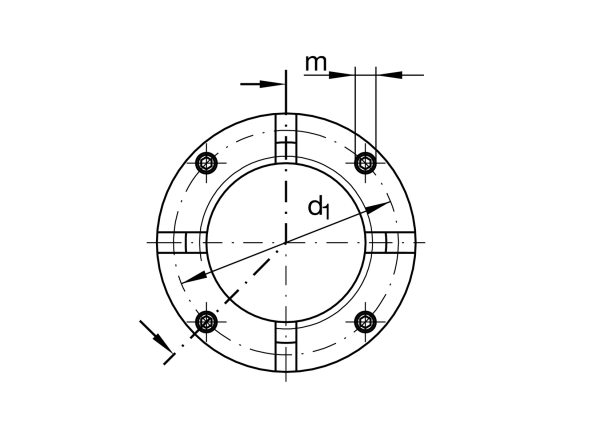

Mounting dimensions
Mm
5 Nm
Mounting torque set screw
