INA AM45
Precision Lock nut
Precision locknuts AM, segments for clamping
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

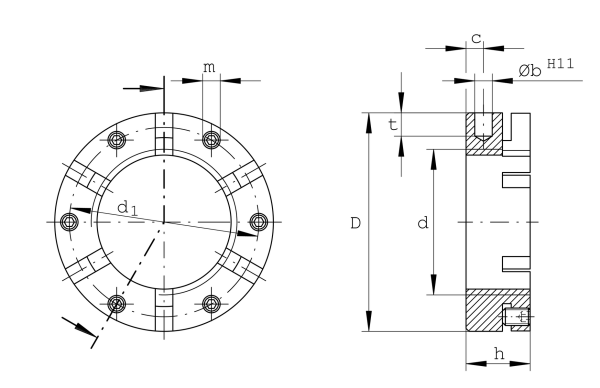

Main Dimensions & Performance Data
d
M45X1,5
Thread
D
70 mm
Outside diameter
h
22 mm
Height
FaB
360,000 N
Breaking load, axial
ML
220 Nm
Breakawag
MAL
65 Nm
Mounting torque reference
Mm
2.9 kg*cm2
Mass moment of inertia
≈m
325 g
Weight
Mounting dimensions
Mm
5 Nm
Mounting torque set screw
