INA AM50
Precision Lock nut
Precision locknuts AM, segments for clamping
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

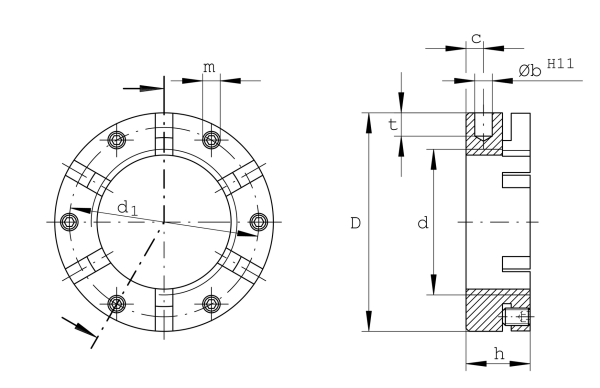

Main Dimensions & Performance Data
d
M50X1,5
Thread
D
75 mm
Outside diameter
h
25 mm
Height
FaB
450,000 N
Breaking load, axial
ML
280 Nm
Breakawag
MAL
85 Nm
Mounting torque reference
Mm
4.3 kg*cm2
Mass moment of inertia
≈m
417 g
Weight
Mounting dimensions
Mm
5 Nm
Mounting torque set screw
