INA AM60
Precision Lock nut
Precision locknuts AM, segments for clamping
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
M60X2
Thread
D
90 mm
Outside diameter
h
26 mm
Height
FaB
550,000 N
Breaking load, axial
ML
365 Nm
Breakawag
MAL
100 Nm
Mounting torque reference
Mm
9.4 kg*cm2
Mass moment of inertia
≈m
650 g
Weight

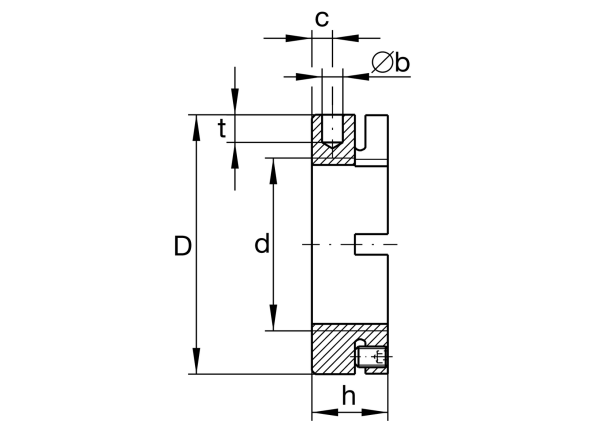

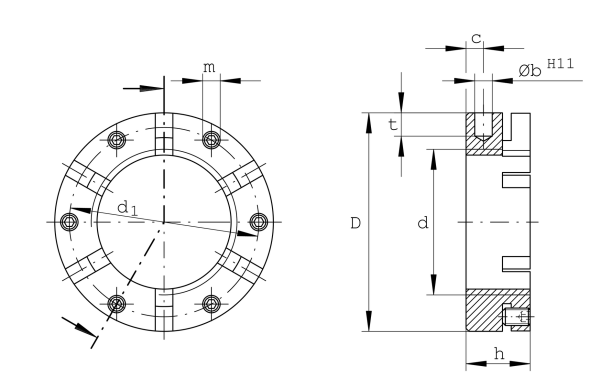

Mounting dimensions
Mm
15 Nm
Mounting torque set screw
