INA AM65
Precision Lock nut
Precision locknuts AM, segments for clamping
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

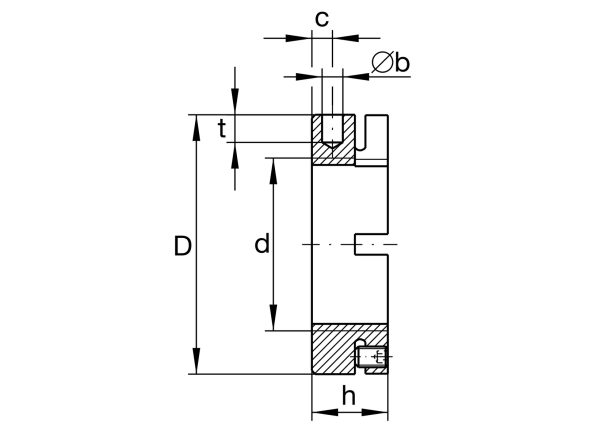

Main Dimensions & Performance Data
d
M65X2
Thread
D
100 mm
Outside diameter
h
26 mm
Height
FaB
560,000 N
Breaking load, axial
ML
400 Nm
Breakawag
MAL
120 Nm
Mounting torque reference
Mm
14.6 kg*cm2
Mass moment of inertia
≈m
820 g
Weight
Mounting dimensions
Mm
15 Nm
Mounting torque set screw
