INA AM70
Precision Lock nut
Precision locknuts AM, segments for clamping
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
M70X2
Thread
D
100 mm
Outside diameter
h
28 mm
Height
FaB
650,000 N
Breaking load, axial
ML
450 Nm
Breakawag
MAL
130 Nm
Mounting torque reference
Mm
14.7 kg*cm2
Mass moment of inertia
≈m
780 g
Weight

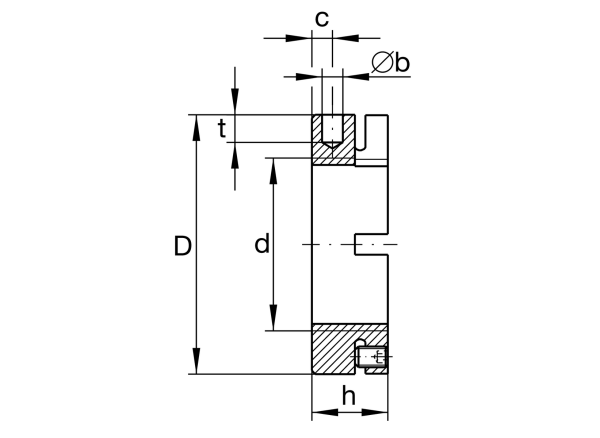

Mounting dimensions
Mm
15 Nm
Mounting torque set screw
