INA AM75
Precision Lock nut
Precision locknuts AM, segments for clamping
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

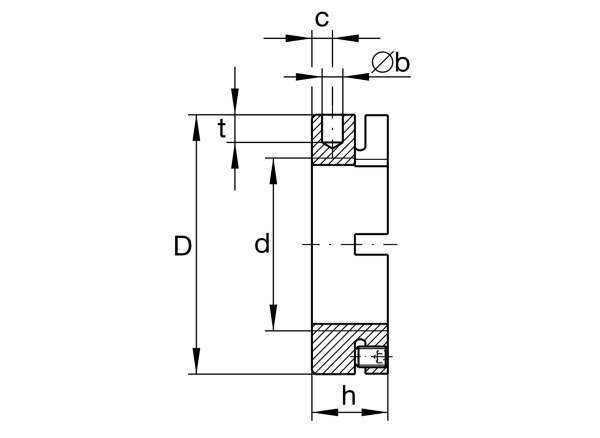

Main Dimensions & Performance Data
d
M75X2
Thread
D
115 mm
Outside diameter
h
30 mm
Height
FaB
750,000 N
Breaking load, axial
ML
610 Nm
Breakawag
MAL
150 Nm
Mounting torque reference
Mm
29 kg*cm2
Mass moment of inertia
≈m
1.2 kg
Weight
Mounting dimensions
Mm
20 Nm
Mounting torque set screw
