INA AM85
Precision Lock nut
Precision locknuts AM, segments for clamping
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
M85X2
Thread
D
115 mm
Outside diameter
h
30 mm
Height
FaB
690,000 N
Breaking load, axial
ML
930 Nm
Breakawag
MAL
180 Nm
Mounting torque reference
Mm
24.8 kg*cm2
Mass moment of inertia
≈m
850.27 g
Weight

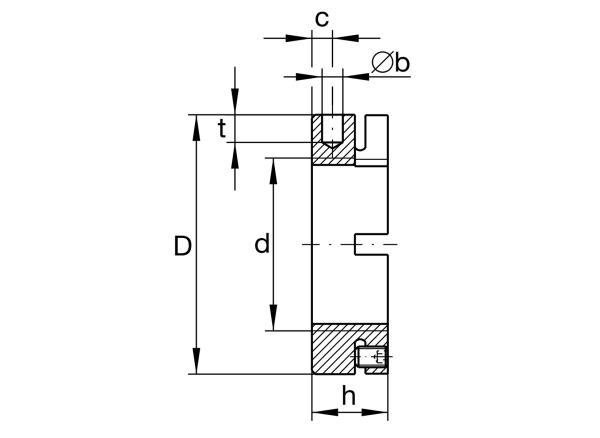

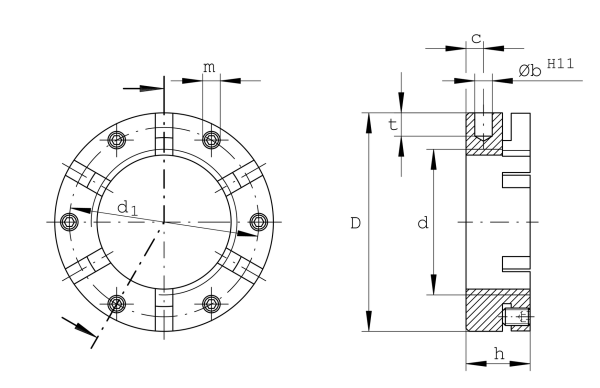

Mounting dimensions
Mm
20 Nm
Mounting torque set screw
