INA AXK120155-A/0-10
Axial Needle Roller and Cage Assembly
Axial needle roller and cage assemblies, single direction, to DIN 5405-2
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

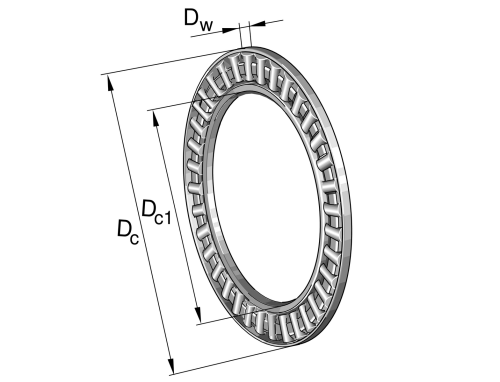

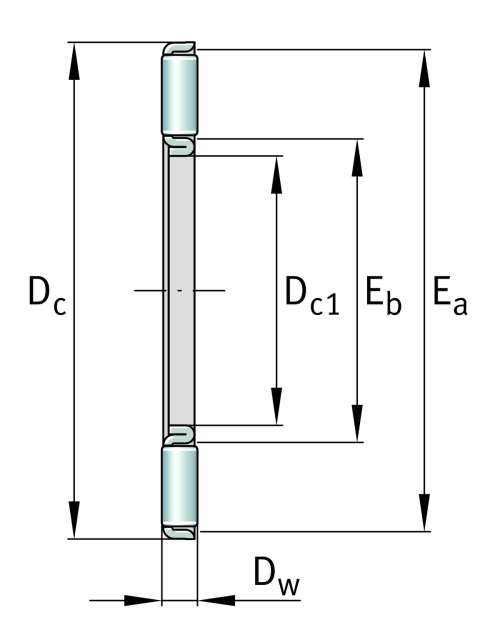

Main Dimensions & Performance Data
Dc1
120 mm
Bore diameter cage
Dc
155 mm
Outside diameter
Dw
4 mm
Rolling element diameter

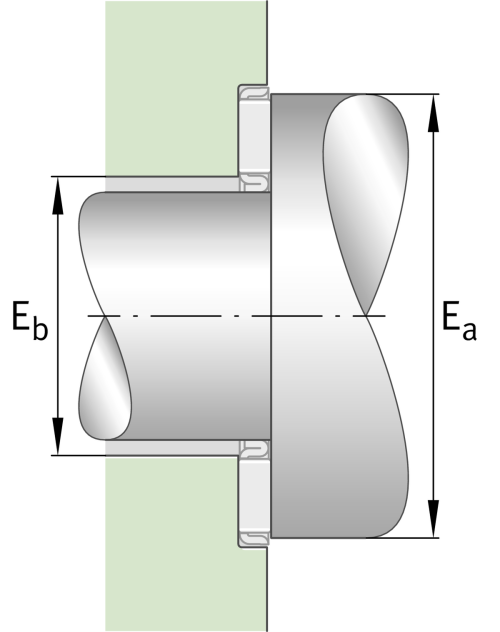

Ea
153 mm
Raceway dimension
Eb
125 mm
Raceway dimension
ca
102,000 N
Basic dynamic load rating, axial
c0a
680,000 N
Basic static load rating, axial
cua
69,000 N
Fatigue load limit, axial
nG
2,090 1/min
Limiting speed
nϑr
810 1/min
Reference speed
≈m
119 g
Weight
