INA AXK150190-A/0-10
Axial Needle Roller and Cage Assembly
Axial needle roller and cage assemblies, single direction, to DIN 5405-2
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

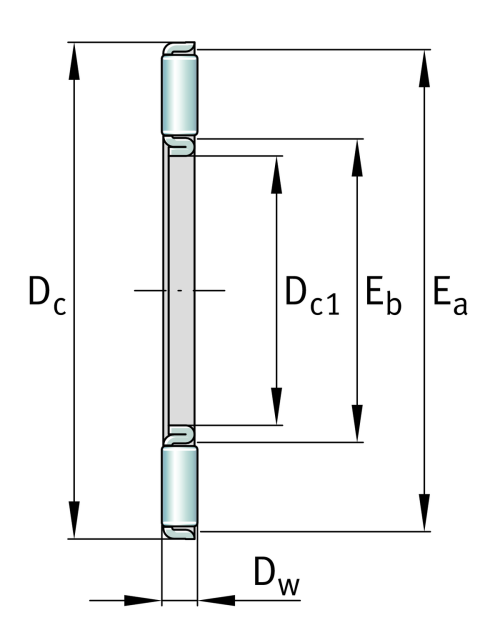

Main Dimensions & Performance Data
Dc1
150 mm
Bore diameter cage
Dc
190 mm
Outside diameter
Dw
5 mm
Rolling element diameter
Ea
187 mm

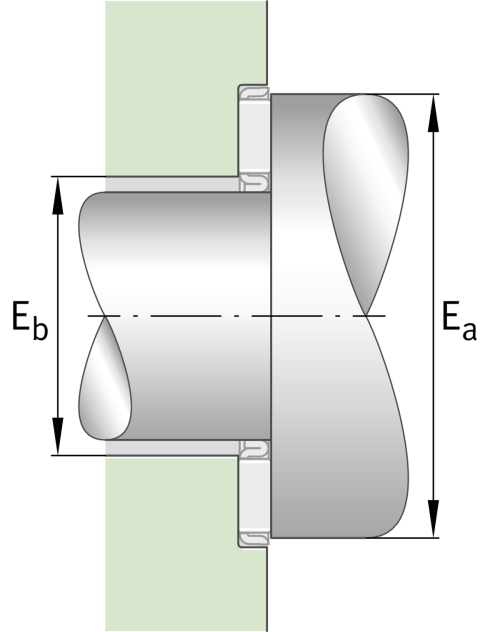

Raceway dimension
Eb
156 mm
Raceway dimension
ca
143,000 N
Basic dynamic load rating, axial
c0a
960,000 N
Basic static load rating, axial
cua
84,000 N
Fatigue load limit, axial
nG
1,690 1/min
Limiting speed
nϑr
660 1/min
Reference speed
≈m
216 g
Weight
