INA BE25-XL
Insert Ball Bearings and Belt Tension Pulleys

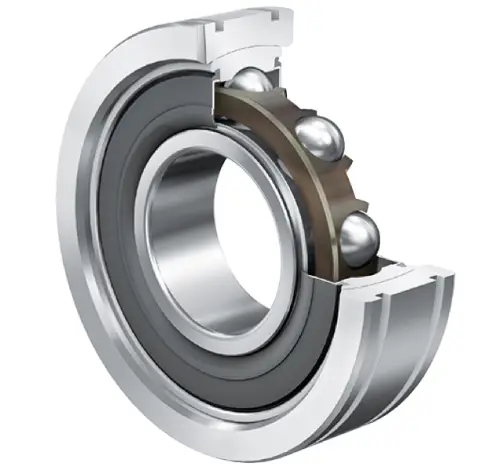

Radial insert ball bearings BE, cylindrical outer ring, with steel aligning ring, P seals on both sides
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

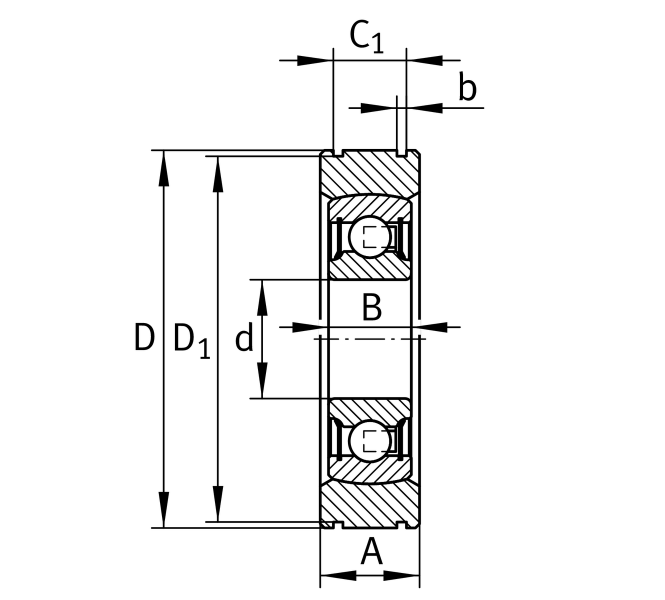

Main Dimensions & Performance Data
d
25 mm
Bore diameter
D
62 mm
Outside diameter
Cr
14,000 N
Basic dynamic load rating, radial
C0r
7,800 N
Basic static load rating, radial
Cur
410 N
Fatigue load limit, radial
≈m
0.24 kg
Weight
