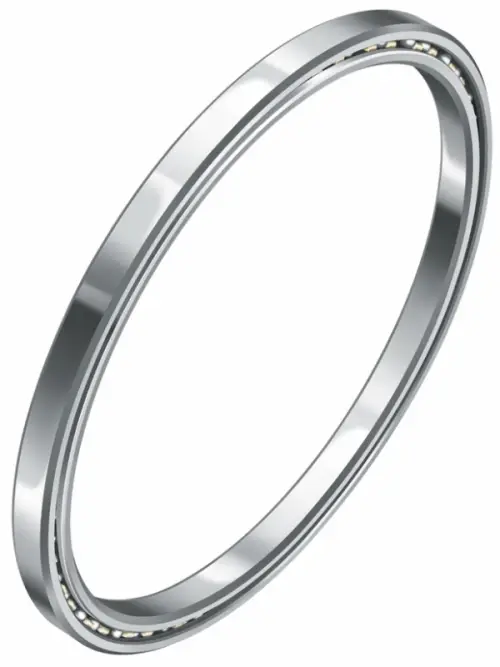

INA CSED180
Thin Section Bearings
Angular contact ball bearing, Thin section bearing CSED, brass sheet metal cage
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

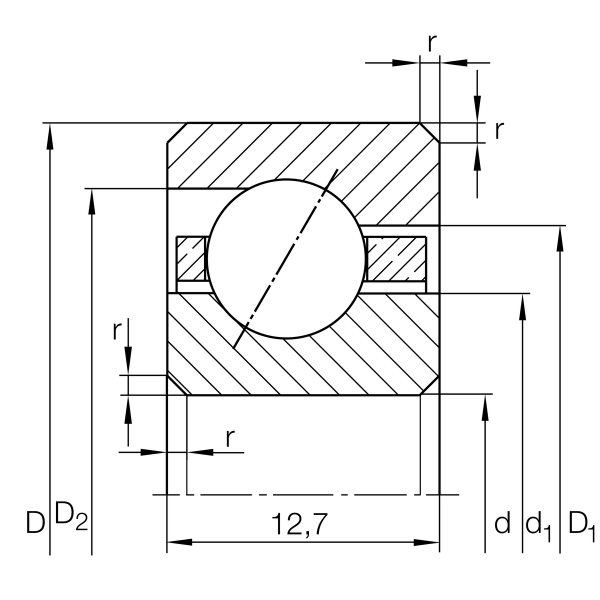

Main Dimensions & Performance Data
d
457.2 mm
Bore diameter
D
482.6 mm
Outside diameter
B
12.7 mm
Width
Cr
20,800 N
Basic dynamic load rating, radial
C0r
60,000 N
Basic static load rating, radial
CG
1,140 1/min
Limiting speed
≈m
1.49 kg
Weight
