INA CSXD140
Thin Section Bearings
Four point contact bearing, Thin section bearing CSXD, brass sheet metal cage
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

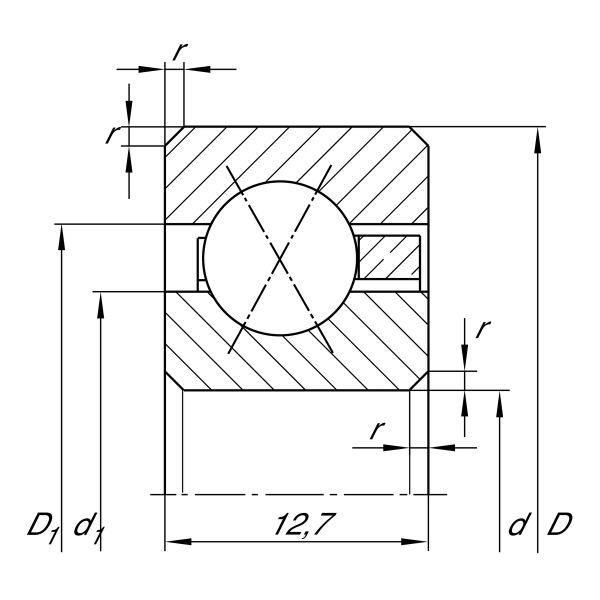

Main Dimensions & Performance Data
d
355.6 mm
Bore diameter
D
381 mm
Outside diameter
B
12.7 mm
Width
Cr
25,500 N
Basic dynamic load rating, radial
C0r
70,000 N
Basic static load rating, radial
CG
720 1/min
Limiting speed
≈m
1.24 kg
Weight
