INA DKLFA2080-2RS
Axial-Super Precision Bearings

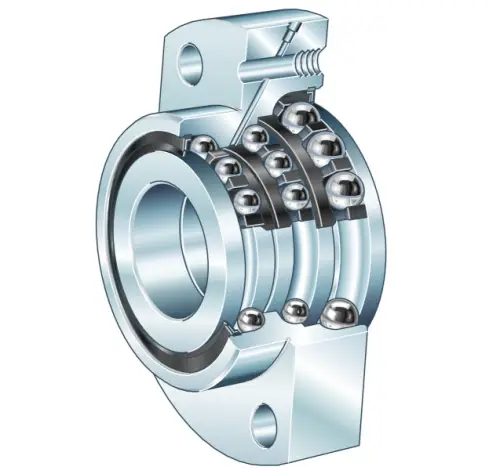

Angular contact ball bearing units DKLFA..-2RS, double direction, for screw mounting, lip seals on both sides, with flattened flange
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
20 mm
Bore diameter
0 mm
Bore diameter upper tolerance
-0.01 mm
Bore diameter lower tolerance
D
52 mm
Outside diameter
0 mm
Outside diameter upper tolerance
-0.013 mm
Outside diameter lower tolerance
B
35 mm
Width
0 mm
Width upper tolerance
-0.25 mm
Width lower tolerance
Ca
44,500 N
Basic dynamic load rating, axial HL
Ca
26,000 N
Basic dynamic load rating, axial
C0a
110,000 N
Basic static load rating, axial HL
C0a
47,000 N
Basic static load rating, axial
Cua
2,800 N
Fatigue load limit, axial HL
Cua
2,070 N
Fatigue load limit, axial
nG Grease
5,000 1/min
Limiting speed for grease lubrication
nϑ
2,200 1/min
Thermally permissible speed
≈m
0.683 kg
Weight
Mounting dimensions
da min
25 mm
Minimum diameter shaft shoulder
da max
43 mm
Maximum diameter of shaft shoulder
M6
Fixing scresw DIN EN ISO 4762 10.9 (not included)
n
4
Number of screws
