INA EGF06080-E40
Plain Bushes

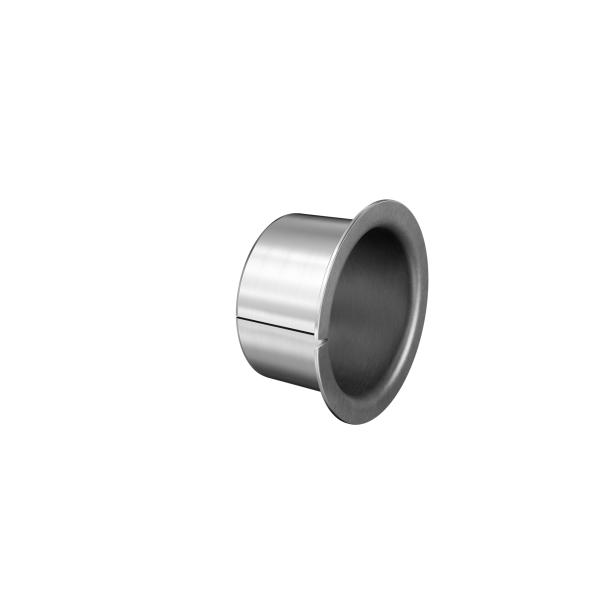

Flanged bush, maintenance-free, ISO 3547, with steel backing
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

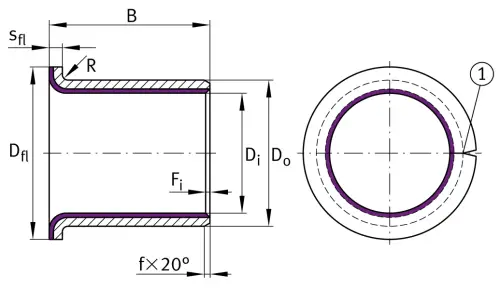

Main Dimensions & Performance Data
Di
6 mm
Inner diameter
Do
8 mm
Outer diameter
Dfl
12 mm
Outside diameter of flange
B
8 mm
Width
Cr
5,040 N
Basic dynamic load rating, radial
C0r
9,000 N
Basic static load rating, radial
Ca
4,840 N
Basic dynamic load rating, axial
C0a
8,640 N
Basic static load rating, axial
≈m
1.53 g
Weight
