INA G1100-XL-KRR-B-AS2/V
Insert Ball Bearings and Belt Tension Pulleys

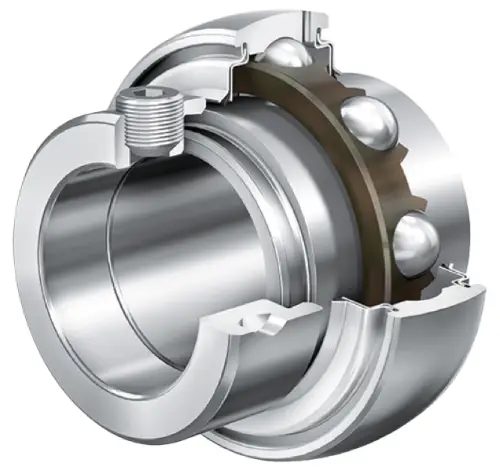

Radial insert ball bearing G1..-KRR-B-AS2/V
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

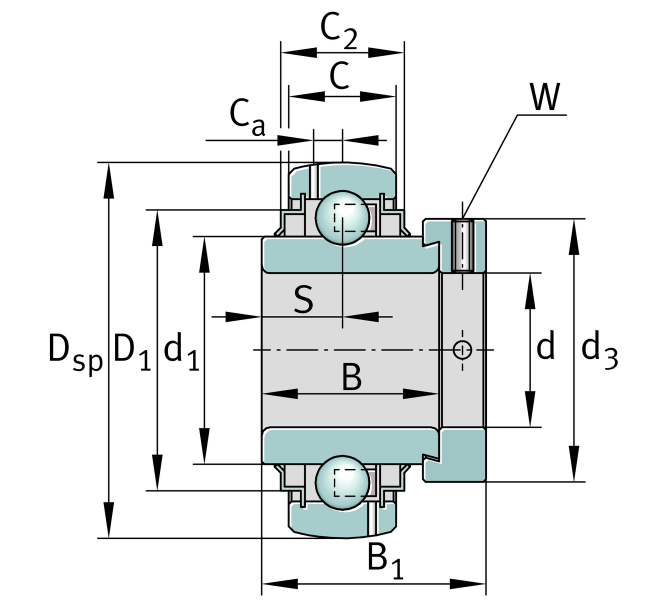

Main Dimensions & Performance Data
d
25.4 mm
Bore diameter
d
1 in
Bore diameter, inch
DSP
52 mm
Outside diameter
B
34.9 mm
Width
Cur
410 N
Fatigue load limit, radial
B1
44.5 mm
Locking collar total width
Cr
14,900 N
Basic dynamic load rating, radial
C0r
7,800 N
Basic static load rating, radial
≈m
0.229 kg
Weight
