INA GAL50-FO-2RS
Rod Ends
Rod end GAL..-FO-2RS, external threads, maintenance necessary
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

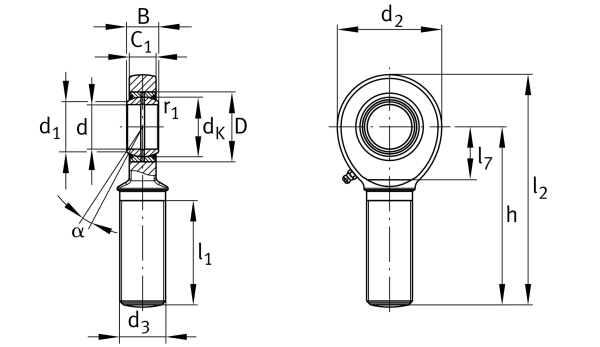

Main Dimensions & Performance Data
Cr
318,000 N
Basic dynamic load rating, radial
C0r
485,000 N
Basic static load rating, radial
d
50 mm
Bore diameter bearing
D
90 mm
Outside diameter bearing
l2
277.5 mm
Total length external thread head
B
56 mm
Width inner ring
d2
135 mm
Outer eye diameter
≈m
6.046 kg
Weight
Mounting dimensions
d1
57.1 mm
Outer flange diameter inner ring
r1smin
0.6 mm
Edge Spacing
