INA GAY15-XL-NPP-B
Insert Ball Bearings and Belt Tension Pulleys

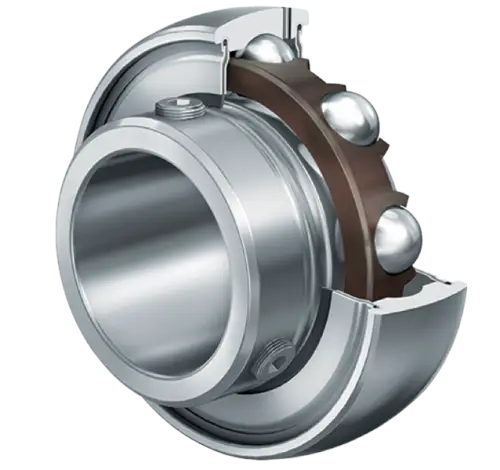

Radial insert ball bearings GAY..-NPP-B, spherical outer ring, location by grub screws, P seals on both sides
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

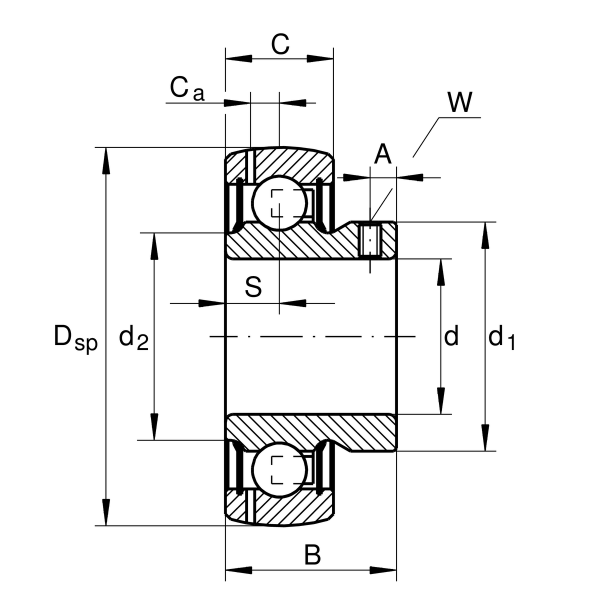

Main Dimensions & Performance Data
d
15 mm
Bore diameter
DSP
40 mm
Outside diameter
B
22 mm
Width
Cur
202 N
Fatigue load limit, radial
Cr
10,100 N
Basic dynamic load rating, radial
C0r
4,750 N
Basic static load rating, radial
≈m
0.09 kg
Weight
