INA GE100-AW
Spherical Plain Bearings

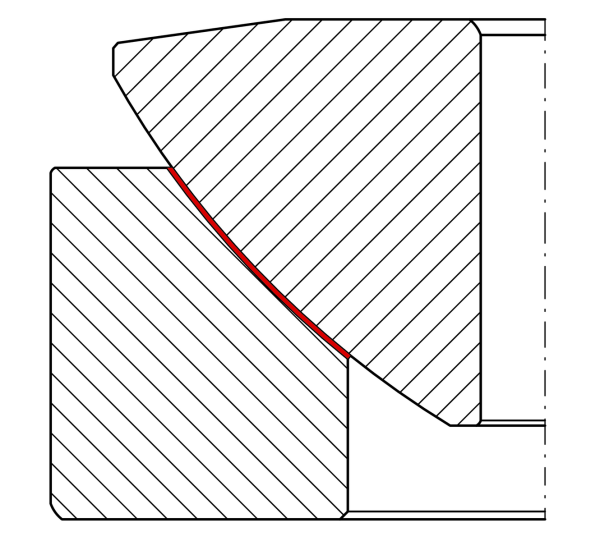

Axial spherical plain bearing, maintenance-free, DIN ISO 12240-3, shaft location washer curved surface with hard chromium coating, open design
(BRAND)：INA
(Availability)：In Stock
Main Dimensions & Performance Data
d
100 mm
Bore diameter bearing
D
210 mm
Outside diameter bearing
T
59 mm
Height
B
50 mm
Width Inner ring
Ca
3,610,000 N
Basic dynamic load rating, axial
C0a
6,020,000 N
Basic static load rating, axial
≈m
10.76 kg
Weight

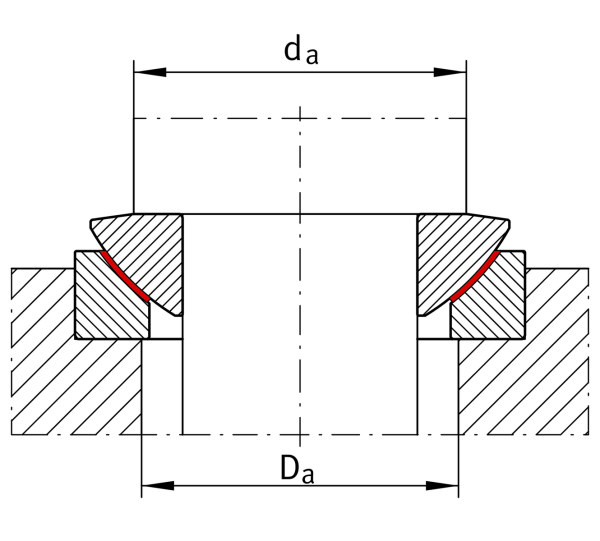

Mounting dimensions
r1smin
1 mm
Edge Spacing
r2smin
0.3 mm
Edge Spacing
da max
155 mm
Connection measure Inner ring
Da min
141 mm
Housing Connection Diameter
